Tissue-Tek® Accu-Edge®  PathPRO™ Grossing Station

    Constructed from high-quality stainless steel, the Tissue-Tek Accu-Edge PathPRO Grossing Station is available as an adjustable or fixed height unit. The elevating model #0137 has the ab

    A histology and pathology grossing station with greater work area ventilation

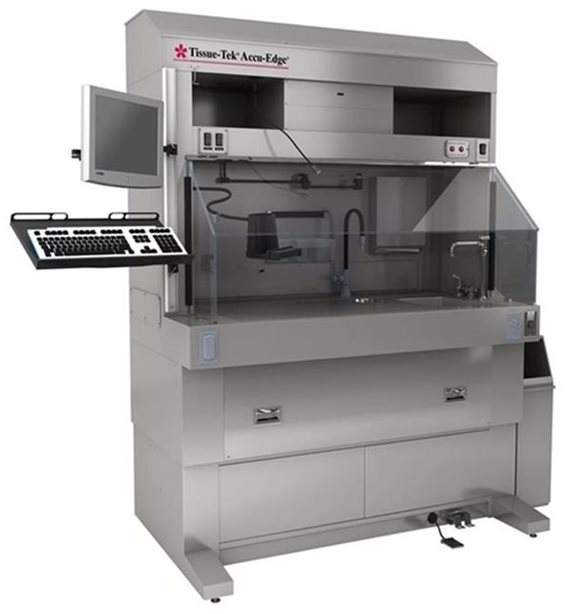

    The Tissue-Tek® Accu-Edge® PathPRO™ Grossing Station is another superior grossing station offered by Sakura Finetek. The histopathology grossing station is equipped with both downdraft and backdraft exhaust systems providing greater ventilation for safety.

    Constructed from high-quality stainless steel, the Tissue-Tek Accu-Edge PathPRO Grossing Station is available as an adjustable or fixed height unit. The elevating model #0137 has the ability to elevate from 32" to 44" to accommodate all lab personnel. Model #0138 is positioned at 36", standard counter height.

    Both of the histopathology grossing stations are equipped with a vacuum breaker-protected water supply and duct directly to the building ventilation system. Other standard features include ½ horsepower disposal, polyethylene dissecting board, magnetic instrument holder, magnifier light deck mount, shelving, paper towel dispenser, and a spray hose assembly.

    Optional accessories are available, including the PAXcamHD Gross Imaging System.

    Features

         Benefits

    Elevation
    • Elevates up and down a total of 12 inches from 32 to 44 inches to accomodate all laboratory personnel
    Customizable
    • Built to laboratory's specifications
    End Rinse
    • Rinses away debris from work area
    304 stainless steel
    • Sturdy construction to perform routine grossing procedures
    Backdraft and Downdraft exhaust
    • Connects to buildings ventilation system to remove fumes away from the work area; pulls fumes both backward and downward
    Sink with mixing faucet
    • Large sink provides water to the grossing station, comes with a 1/2 HP disposal

    Product names Tissue-Tek® Accu-Edge® PathPRO™ Grossing Station, Elevating
    Tissue-Tek® Accu-Edge® PathPRO™ Grossing Station, Fixed
    Product codes 0137
    0138
    Application Grossing procedures
    Dimensions 60 (W) x 34 (D) x 77.5 to 89.5 (H) inches
    153 (W) x 86 (D) x 197 to 227 (H) cm
    Weight 900 lbs (409 kg)
    Regulatory status IVD, FDA Class I

    Product code

    Product name and quantity

    0148 Tissue-Tek® Accu-Edge® Grossing Station, CPU Bracket
    0150 Tissue-Tek® Accu-Edge® Grossing Station, Camera Mount Facility
    0152 Tissue-Tek® Accu-Edge® Grossing Station, Cassette Holders; 3/case
    0156 Tissue-Tek® Accu-Edge® Grossing Station, Disposal, 1 HP
    0164 Tissue-Tek® Accu-Edge® Grossing Station, Eyewash Assembly
    0169 Tissue-Tek® Accu-Edge® Grossing Station, Filter Activated Carbon & Potassium Permanganate
    0170 Tissue-Tek® Accu-Edge® Grossing Station, Flammable Storage Cabinet
    0172 Tissue-Tek® Accu-Edge® Grossing Station, Formalin Dispense/Collection
    0175 Tissue-Tek® Accu-Edge® Grossing Station, Form Holders; 2/case
    0176 Tissue-Tek® Accu-Edge® Grossing Station, Full Perimeter Rinse
    0177 Tissue-Tek® Accu-Edge® Grossing Station, Glove Box Holder
    0178 Tissue-Tek® Accu-Edge® Grossing Station, Halogen Light, Flex Arm
    0186 Tissue-Tek® Accu-Edge® Grossing Station, Magnifier Light, Deck Mount
    0188 Tissue-Tek® Accu-Edge® Grossing Station, Microphone on Flex Arm
    0190 Tissue-Tek® Accu-Edge® Grossing Station, Monitor & Keyboard Stand
    0201 Tissue-Tek® Accu-Edge® Grossing Station, Ruler, Removable, Stainless Steel
    0203 Tissue-Tek® Accu-Edge® Grossing Station, Scale, Economy
    0204 Tissue-Tek® Accu-Edge® Grossing Station, Scale, Digital
    0206 Tissue-Tek® Accu-Edge® Grossing Station, Shelving/Cabinets, Adjustable
    0207 Tissue-Tek® Accu-Edge® Grossing Station, Side Splashes
    0208 Tissue-Tek® Accu-Edge® Grossing Station, Splash Shield on Flex Arm
    0215 Tissue-Tek® Accu-Edge® Grossing Station, Trash Container, Ventilated
    0217 Tissue-Tek® Accu-Edge® Grossing Station, Utility Drawer
    0222 Tissue-Tek® Accu-Edge® Grossing Station, Ventilation, Self-Contained
    0224 Tissue-Tek® Accu-Edge® Grossing Station, Video Camera Arm
    0228 Tissue-Tek® Accu-Edge® Grossing Station, Dictation, Voice Activated
    0229 Tissue-Tek® Accu-Edge® Grossing Station, Work Area Cover, Plexiglas
    0230 Tissue-Tek® Accu-Edge® Grossing Station, Writing Platform, Pull-Out
    PI-HDG PAXcamHD Gross Imaging Camera plus Software
    PI-HDG-B PAXcam Benchtop stand
    PI-HDG-BL PAXcam Back Light
    PI-HDG-RL PAXcam Ringlight
    PI-HDG-RBL PAXcam Combined Ringlight with Back Light
