Tissue-Tek® Accu-Edge® FLEX Grossing Tools

Imagine having ... … a workspace that adapts to you! Designed for efficiency, safety, and configured for you and by you!DESIGN YOUR ELEVATING GROSSING STATIONDESIGN YOUR NON-ELEVATING / CO

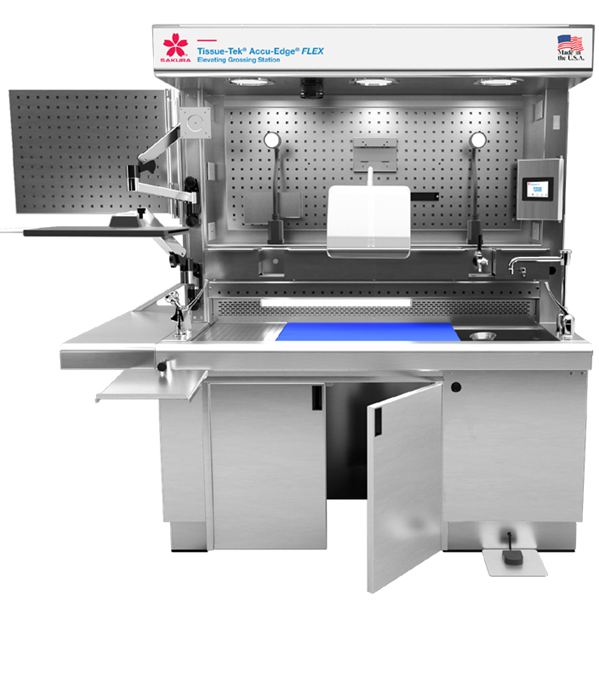

Tissue-Tek® Accu-Edge® FLEX Grossing Stations

Maximize flexibility, performance, and safety in your grossing area

Are you dealing with?

  • Uncomfortable workstations that do not accommodate different users
  • Grossing tools and accessories that cannot be easily accessed
  • Ventilation problems that compromise safety

Imagine having ...

 … a workspace that adapts to you! Designed for efficiency, safety, and configured for you and by you!

DESIGN YOUR ELEVATING GROSSING STATION

DESIGN YOUR NON-ELEVATING / COUNTERTOP GROSSING STATION

Features

     Benefits
Pegboard backsplash
  • Enables flexible placement of grossing tools, accessories, and consumables as desired
Backdraft exhaust
  • Ventilation with dual 8” duct stubs for in-house ventilation
Touchscreen control panel
  • Intuitive touch screen for adjusting lighting, airflow, timers, and settings
Motorized elevation
  • Adjusts the bench level from 32 to 44 inches to accommodate laboratory personnel of different height
LED recessed lights
  • Provides bright illumination of the workspace to better see and gross specimens
304 stainless steels
  • Long-lasting construction made in U.S.A.
Front and side shelving
  • To accommodate placing device like an on-demand cassette printer
Four (4) G.F.C.I. receptacles
  • To power devices like a monitor; two (2) include a USB port

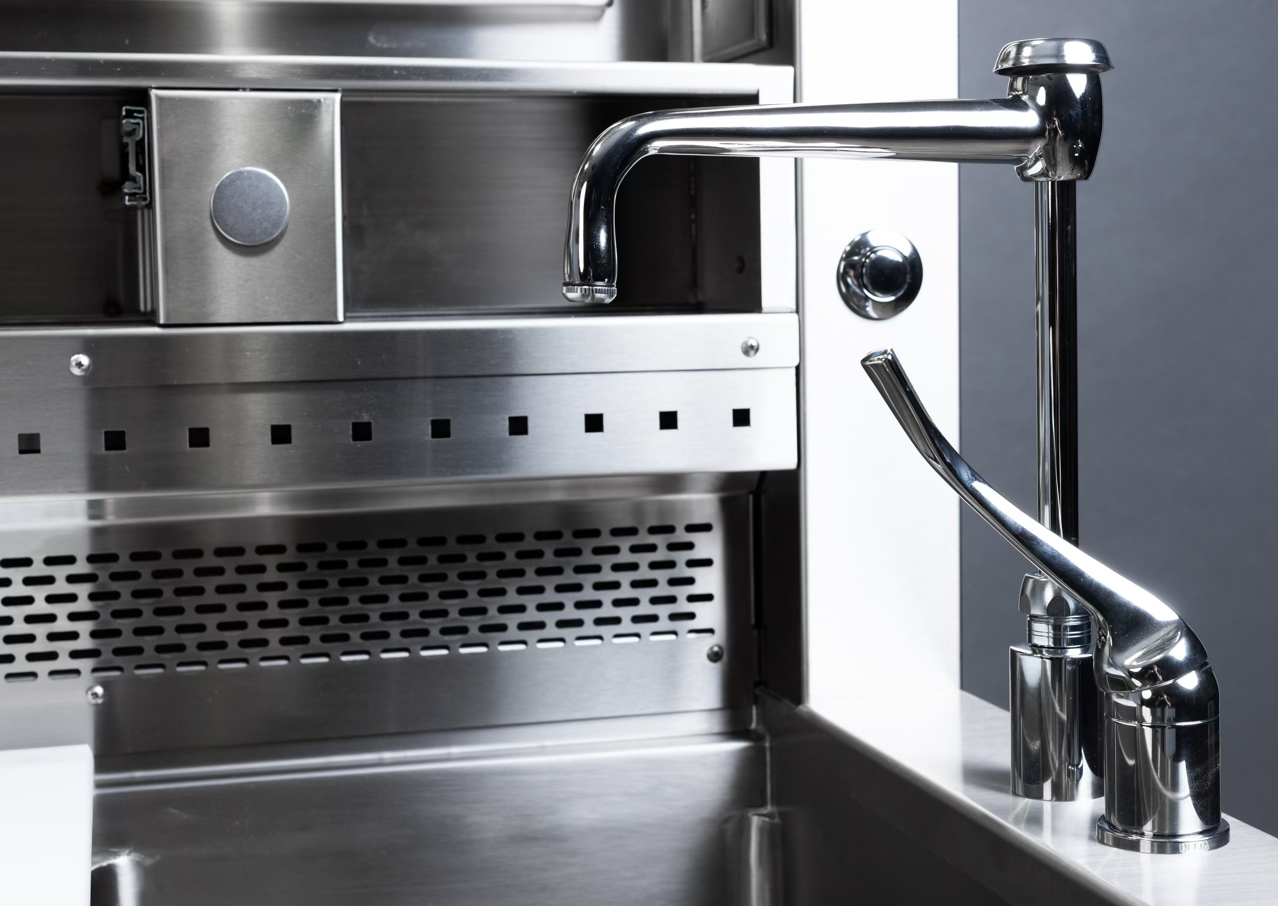

Sink with mixing faucet
  • Provides running water to the grossing station, with hot/cold mixing control, comes with a 1/2 HP disposal
2 adjustable grossing wells
  • Standardization; ensures specimens are of exact, uniform thickness throughout

Options

Benefits
Motorized elevation
  • Adjusts the bench level from 32 to 44 inches to accommodate laboratory personnel of different height
Wide range of accessories
  • Leverage more than 65 accessories to design the grossing station of your dreams
Product name
  • Tissue-Tek® Accu-Edge® FLEX Elevating Grossing Stations
  • Tissue-Tek® Accu-Edge® FLEX Grossing Stations
  • Tissue-Tek® Accu-Edge® FLEX Countertop Grossing Stations
Product code
  • 0400–0410, 0483, 0485
  • 0411–0420, 0484, 0486
  • 0487–0498
Application
  • Grossing of human and animal specimens
Dimensions
  • 48 (L) x 32 (W) x 75 to 87 (H) inches (1.2m L x 0.8m W x 1.9 to 2.2m H)
  • 60 (L) x 32 (W) x 75 to 87 (H) inches (1.5m L x 0.8m W x 1.9 to 2.2m H)
  • 72 (L) x 32 (W) x 75 to 87 (H) inches (1.8m L x 0.8m W x 1.9 to 2.2m H)
  • 96 (L) x 32 (W) x 75 to 87 (H) inches (2.4m L x 0.8m W x 1.9 to 2.2m H)
Weight
  • 48-inch station, 552 lbs. (251 kg)
  • 60-inch station, 885 lbs. (401 kg)
  • 72-inch station, 950 lbs. (431 kg)
  • 96-inch station, 1,100 lbs. (499 kg)
Power requirement
  • 115-250 V, 1 PH 50/60Hz, 15A @ 115 VAC, 10A @ 250 VAC
Standard features of all grossing stations
  • Stainless steel construction
  • 10” (25.4c m) deep sink located on the right or left side (as configured)
  • Backdraft ventilation
  • In-house ventilation duct stubs with (2x) 8" (20.32 cm) round flex ducts
  • Touch screen control panel and alert system
  • Seismic anchoring points
  • Integrated hood-mounted camera cut-out and cover plate
  • Faucet mixing-flow control
  • Side/column accessory mounts
  • (4) Power outlets rated at 15amps: (2 G.F.C.I. receptacles, 2 with USB power)
  • One (1) perforated grid plate
  • One (1) sliding work surface cutting board, white
  • Two (2) wire ports for cord management
  • 1/2 Hp. Disposal (dry)

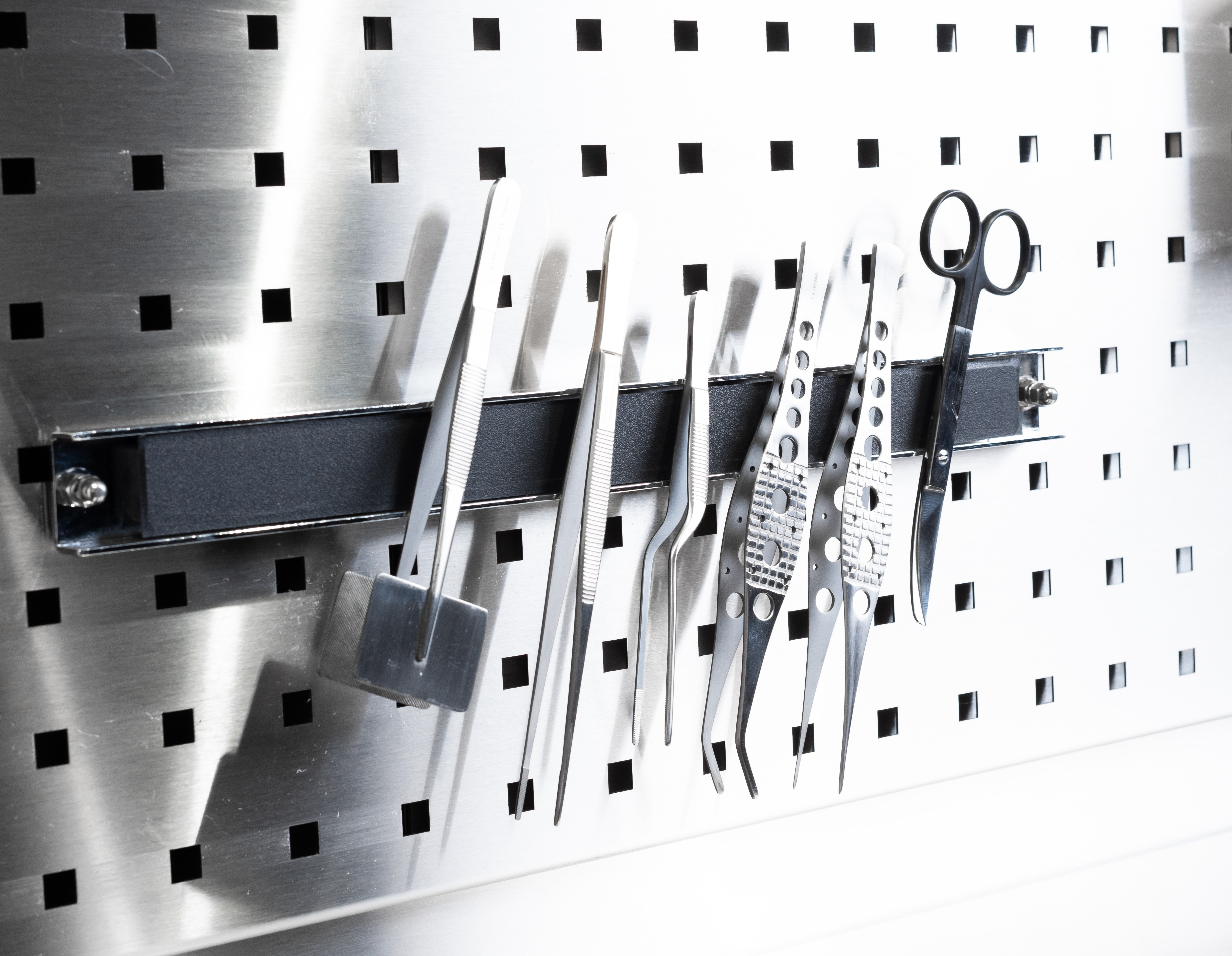

  • Magnetic instrument bar
  • One (1) large and one (1) small organizer bin
  • Single Shelf
  • Replaceable ventilation filter mount in the from grill

0421

Tissue-Tek® Accu-Edge® FLEX, Cabinet Doors for Leg Area

0422

Tissue-Tek® Accu-Edge® FLEX, Shelf Mounted Gooseneck Safety Splash Shield

0423

Tissue-Tek® Accu-Edge® FLEX, Cabinet Doors for Leg Area

0423

Tissue-Tek® Accu-Edge® FLEX, Recirculation Air Filtration Unit, 60 inches

0426

Tissue-Tek® Accu-Edge® FLEX, Red GFCI and USB Outlets (*)

0427

Tissue-Tek® Accu-Edge® FLEX, Formalin Dispensing & Collection System

0428

Tissue-Tek® Accu-Edge® FLEX, Building Management System Alert Integration/p>

0429

Tissue-Tek® Accu-Edge® FLEX, Hand Sprayer & End Rinse Combination, Left Hand Sink Units

0430

Tissue-Tek® Accu-Edge® FLEX, Hand Sprayer & End Rinse Combination, Right Hand Sink Units

0431

Tissue-Tek® Accu-Edge® FLEX, Formalin Dispensing System

0432

Tissue-Tek® Accu-Edge® FLEX, Formalin Collection System

0433

Tissue-Tek® Accu-Edge® FLEX, Foot Pedal Control for Faucet

0434

Tissue-Tek® Accu-Edge® FLEX, Infrared Sensor Control for Faucet

0435

Tissue-Tek® Accu-Edge® FLEX, Stationary Monitor Mount for Pegboard

0436

Tissue-Tek® Accu-Edge® FLEX, Requisition Holder for Pegboard

0437

Tissue-Tek® Accu-Edge® FLEX, Ticket Holder for Pegboard

0438

Tissue-Tek® Accu-Edge® FLEX, Marking Dye Holder for Pegboard

0439

Tissue-Tek® Accu-Edge® FLEX, 14" Shelf for Pegboard

0440

Tissue-Tek® Accu-Edge® FLEX, Small Bin for Pegboard

0441

Tissue-Tek® Accu-Edge® FLEX, Large Bin for Pegboard

0442

Tissue-Tek® Accu-Edge® FLEX, C-fold Glove/Paper Towel Bin for Pegboard

0443

Tissue-Tek® Accu-Edge® FLEX, Double C-fold Glove/Paper Towel Bin for Pegboard

0444

Tissue-Tek® Accu-Edge® FLEX, Triple C-fold Glove/Paper Towel Bin for Pegboard

0445

Tissue-Tek® Accu-Edge® FLEX, Quad C-fold Glove/Paper Towel Bin for Pegboard

0446

Tissue-Tek® Accu-Edge® FLEX, Magnetic Tool Bar for Pegboard

0448

Tissue-Tek® Accu-Edge® FLEX, Barcode Scanner Holster for Pegboard

0449

Tissue-Tek® Accu-Edge® FLEX, Face Shield Holster for Pegboard

0450

Tissue-Tek® Accu-Edge® FLEX, Glasses Holster for Pegboard

0451

Tissue-Tek® Accu-Edge® FLEX, Wipe Dispenser for Pegboard

0452

Tissue-Tek® Accu-Edge® FLEX, Garbage Disposal Upgrade to 1 HP with Waterjet (*)

0453

Tissue-Tek® Accu-Edge® FLEX, Left Side Pegboard Wing Extension

0454

Tissue-Tek® Accu-Edge® FLEX, Right Side Pegboard Wing Extension

0455

Tissue-Tek® Accu-Edge® FLEX, Articulating Keyboard Arm for Vertical Rail

0456

Tissue-Tek® Accu-Edge® FLEX, CPU Mount for Side of Hood

0457

Tissue-Tek® Accu-Edge® FLEX, Monitor Arm for Vertical Rail

0458

Tissue-Tek® Accu-Edge® FLEX, Hitch Mounted Countertop Writing Ledge

0459

Tissue-Tek® Accu-Edge® FLEX, Countertop Light Bar

0460

Tissue-Tek® Accu-Edge® FLEX, Countertop Grid Plate (*)

0461

Tissue-Tek® Accu-Edge® FLEX, Hitch Mount Adapter for Countertop (*)

0462

Tissue-Tek® Accu-Edge® FLEX, Vented Trash Can on Wheels, Left

0463

Tissue-Tek® Accu-Edge® FLEX, Vented Trash Can on Wheels, Right

0464

Tissue-Tek® Accu-Edge® FLEX, Dissection Board, White (*)

0465

Tissue-Tek® Accu-Edge® FLEX, Dissection Board, White w/ 3" Legs (*)

0466

Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Light Blue (*)

0467

Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Light Blue w/ 3" Legs (*)

0468

Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Dark Blue (*)

0469

Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Dark Blue w/ 3" Legs (*)

0470

Tissue-Tek® Accu-Edge® FLEX, Filtration Scheduling & Alert System

0471

Tissue-Tek® Accu-Edge® FLEX, Countertop Dictation Stand, 7x5x8" @55 Degree Angle

0472

Tissue-Tek® Accu-Edge® FLEX, 7 inch Shelf for Pegboard

0473

Tissue-Tek® Accu-Edge® FLEX, Cassette Labeling Shelf, Left Side

0474

Tissue-Tek® Accu-Edge® FLEX, Cassette Labeling Shelf, Right Side

0475

Tissue-Tek® Accu-Edge® FLEX, Removeable Countertop Inch/cm Scale Label (*)

0476

Tissue-Tek® Accu-Edge® FLEX, Shelf Mounted Single Gooseneck LED Task Light

0477

Tissue-Tek® Accu-Edge® FLEX, Shelf Mounted Dual Gooseneck LED Task Light

0478

Tissue-Tek® Accu-Edge® FLEX, Small Drawer

0479

Tissue-Tek® Accu-Edge® FLEX, Small Instrument Drawer

0480

Tissue-Tek® Accu-Edge® FLEX, Large Drawer

0481

Tissue-Tek® Accu-Edge® FLEX, Airflow Monitoring & Alert System

0482

Tissue-Tek® Accu-Edge® FLEX, Countertop Hitch Mounted Keyboard (*)

0499

Tissue-Tek® Accu-Edge® FLEX, Recirculating Air Filtration Unit, 48 inches

0615

Tissue-Tek® Accu-Edge® FLEX, Recirculating Air Filtration Unit, 72 inches

0616

Tissue-Tek® Accu-Edge® FLEX, Recirculating Air Filtration Unit, 96 inches

0617

Tissue-Tek® Accu-Edge® FLEX, Cabinet Doors for Legs Area, 48"; 2 doors per set, 1 set

0618

Tissue-Tek® Accu-Edge® FLEX, Cabinet Doors for Legs Area, 72"; 2 doors per set, 1 set

0619

Tissue-Tek® Accu-Edge® FLEX, Cabinet Doors for Legs Area, 96"; 2 doors per set, 2 sets
Search:
Tissue-Tek® Accu-Edge® FLEX Grossing Stations
Tissue-Tek® Accu-Edge® FLEX Grossing Stations
Tissue-Tek<sup>®</sup> Accu-Edge<sup>®</sup> <i>FLEX </i>Grossing Stations
CATALOG
REQUEST A QUOTE
CONTACT US

Gallery

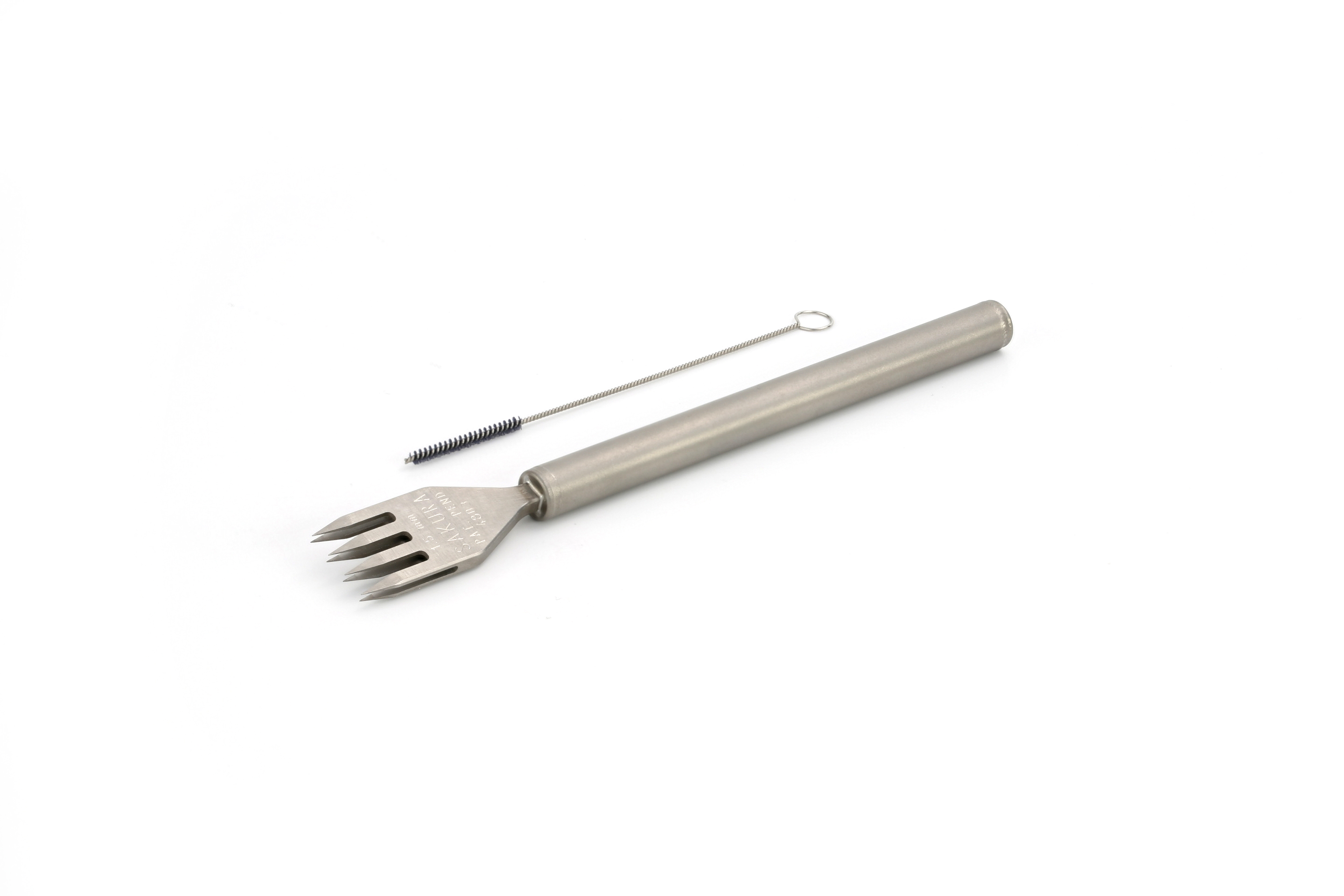

Tissue-Tek Accu-Edge Forks
Grossing forks are ideal for specimens with layers.

They are designed for hollow organs or specimens with layers and are available in three sizes: 1.5 mm, 2.0 mm, and 2.5 mm. Each fork has two

set of tines; the distance between the tines determines the size of the fork. They hold the tissue in place while sliding a trimming or scalpel blade against the outer surfaces of the fork results in a section of the desired thickness between the tines.

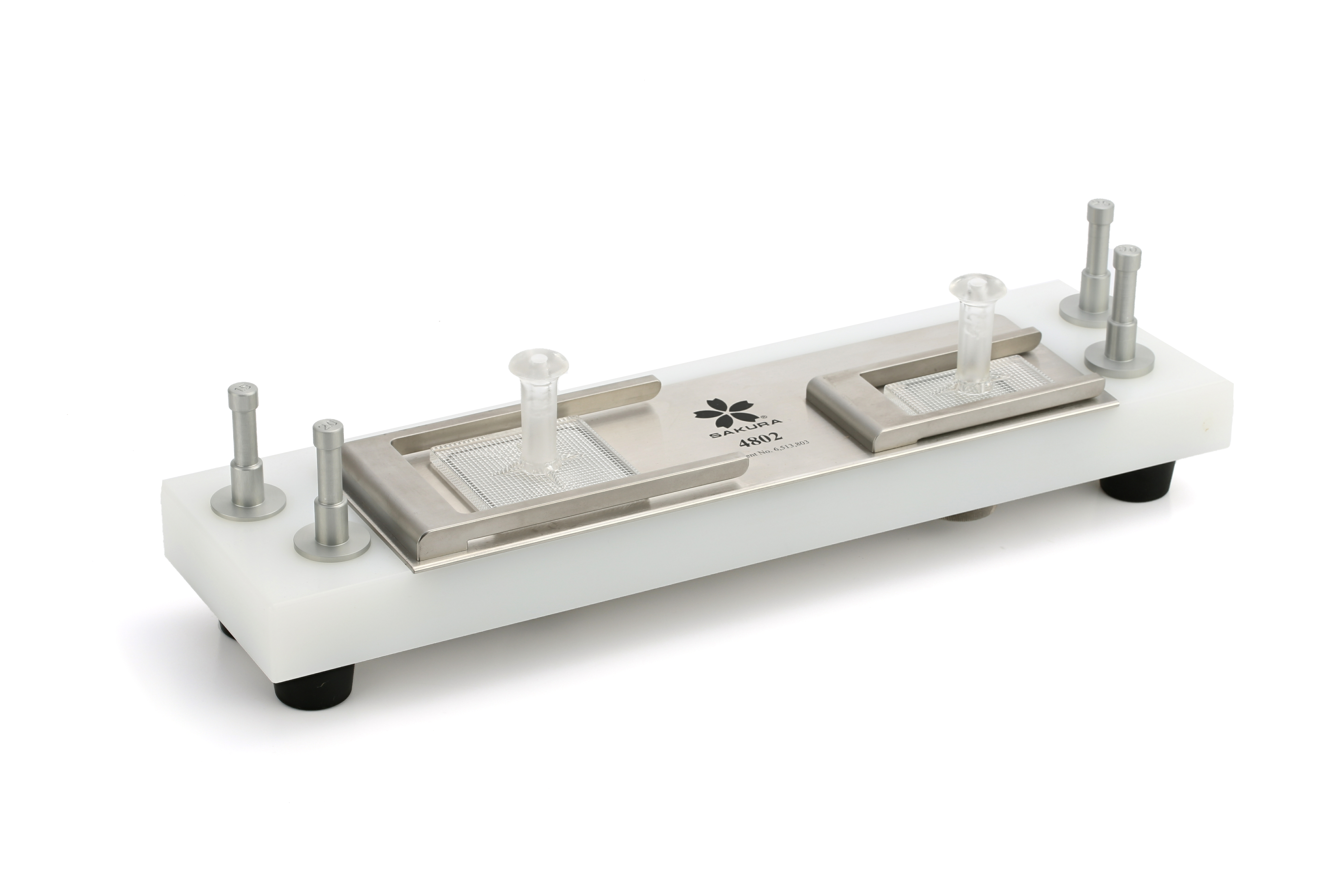

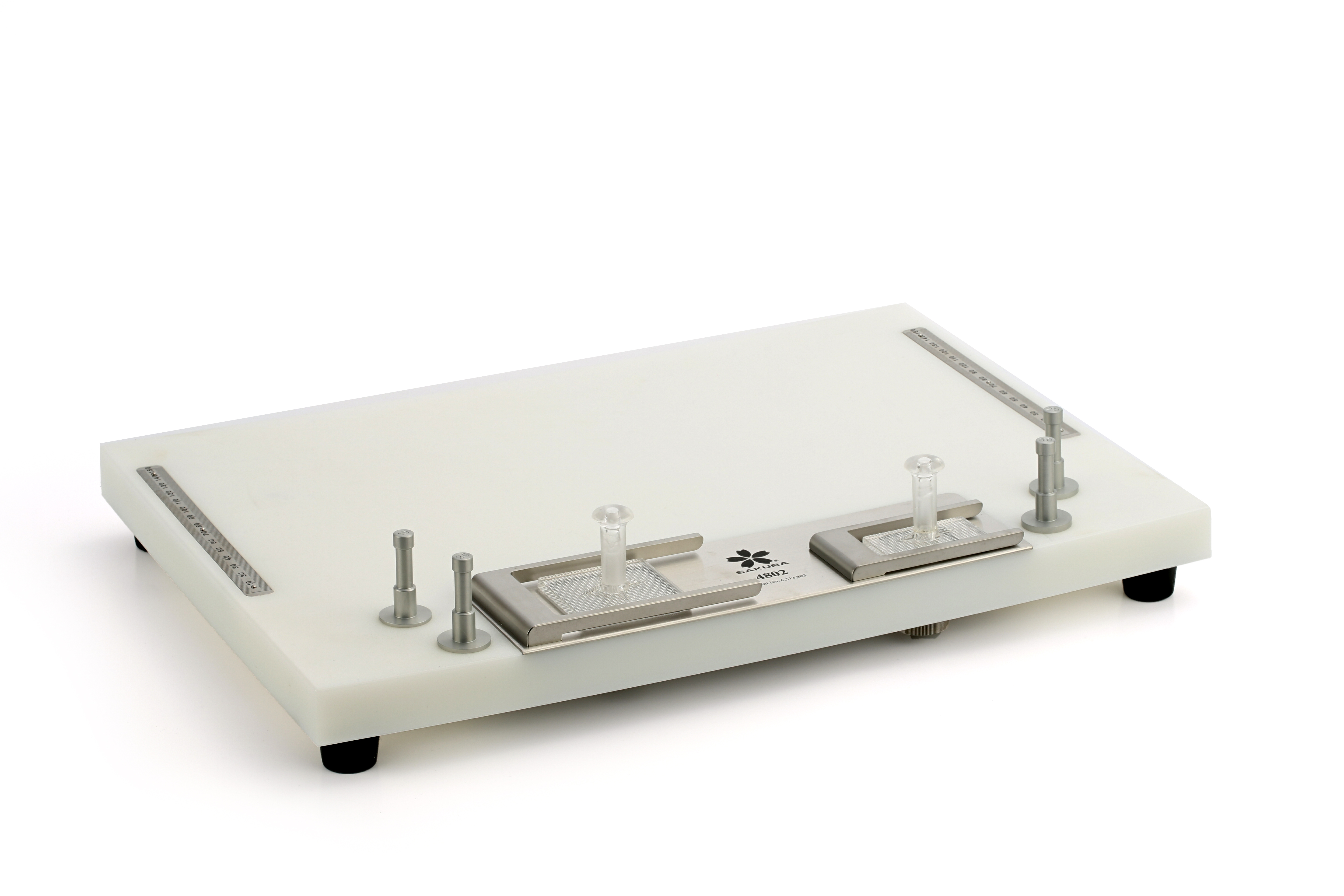

Tissue-Tek® Accu-Edge® Grossing Wells

Can be placed on top of a standard grossing board when needed. The compact design makes cleaning between cases easy.
Grossing tools ensure uniform results

The full set of Tissue-Tek® Accu-Edge® grossing products enables users to facilitate and standardize the grossing process and produce consistent results for tissue processing.
