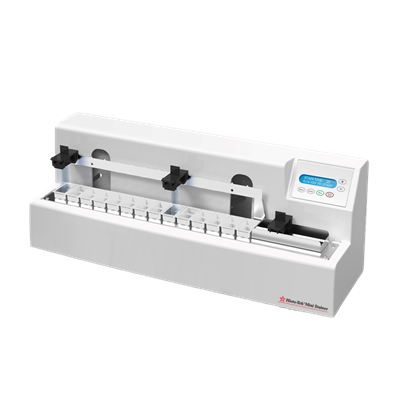

The Histo-Tek® Mini Stainer standardizes the staining process for optimal quality and consistency. This small, robust linear slide stainer is created to meet your laboratorie
A linear slide stainer for your frozen sections
The Histo-Tek® Mini Stainer standardizes the staining process for optimal quality and consistency. This small, robust linear slide stainer is created to meet your laboratories demands. Ideal for several types of samples including Mohs, frozen sections, special stains and FNAs. It's continuous loading allows this linear slide stainer to keep up with your laboratory demands with true walkaway convenience allowing you to focus on other tasks.
The small 50 mL reagent containers not only reduce cost but also minimize reagent waste and with up to 3 running water stations, you are assured of crisper specimen staining. The simple to use keypad allows you to program within minutes with key parameter adjustments such as time, agitation, and start position. Fume cover and activated carbon filter are standard features to ensure laboratory personnel safety. Designed with flexibility in mind, its small footprint of 24.5'' W x 8.5'' D x 11.0'' H is guaranteed to fit on any laboratory workbench.
Features
|
Benefits
|
| Automated staining |
- Eliminates labor intensive hand staining
|
| Standardizes the staining process |
|
| Continuous loading |
|
| Collection tank holds 16 slides |
- Allows walkaway convenience
|
| Up to 4 slides per carrier |
- Allows for multiple tissue levels
|
| 50 mL containers |
- Minimizes reagent waste and reduces cost
|
| Up to 3 rinse stations |
- Clean water for crisp specimen staining
|
| Fume cover and filter |
|
| Keypad display |
|
| Compact footprint |
- Fits on any laboratory workbench
|
| Product name |
Histo-Tek® Mini Stainer |
| Product code |
1920 |
| User safety |
Fume hood, activated carbon filter |
| Dimensions |
24.5 (W) X 8.5 (D) X 11.0 (H) inches
62.0 (W) X 22.0 (D) X 28 (H) cm |
| Unit weight without reagents, unpacked |
Approx. 35 lbs (16 kg) |
| Staining time |
2 to 300 seconds, same time for all stations |
| Loading capacity |
Max. 4 slide carriers |
| Reagent stations |
Max. 14 |
| Rinse stations |
Up to 3 (with 3 rinse stations, 11 reagent stations are available) |
| Reagent container volume |
50 mL |
| Slide carrier capacity |
Max. 4 slides per slide carrier |
| Exit tank capacity |
Max. 16 slides (4 slide carriers) |
| Certifications |
UL, cUL, CE
IEC 61010 classification
Protective class 1
Pollution degree 2
Overvoltage installation category II |
| Regulatory status |
IVD, FDA Class I |
