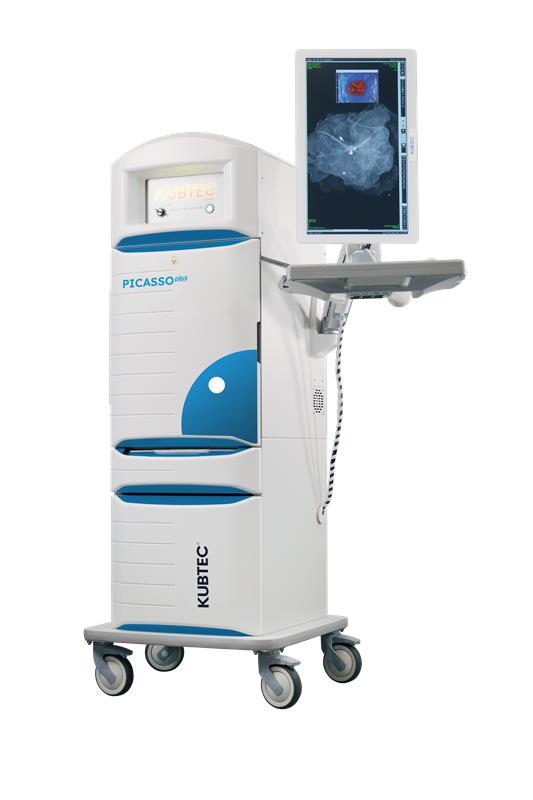

KUBTEC PICASSO® Plus Specimen Radiography System

The PICASSO® Plus System is the only Pathology specimen imaging system to feature Amorphous Selenium Direct Capture Technology. The high image quality used to diagnose breast cancer can now also b

The next-generation of dual specimen imaging devices for Pathology

Tired of?

  • Searching for clips in breast specimens
  • Spending too much time handling large or complex specimens
  • Transporting specimens back and forth between Pathology and Radiology

Ever wished?

  • To more efficiently manage the increase of specimen volume in the grossing area

The PICASSO® Plus System is the only Pathology specimen imaging system to feature Amorphous Selenium Direct Capture Technology. The high image quality used to diagnose breast cancer can now also be used to help analyze breast tissue in the pathology lab.

See more and find it faster before grossing the specimen


Scroll left & right on the Image Blender to find the clip

Blend x-ray & optical images to quickly locate surgical clips, margins, and micro - calcifications to speed up grossing.

Boost the way you work

Features

     Benefits

Image Blender

  • Combine x-ray and optical images to quickly locate surgical clips, margins, and micro-calcifications to speed up grossing
    (patented and solely available to KUBTEC instruments)

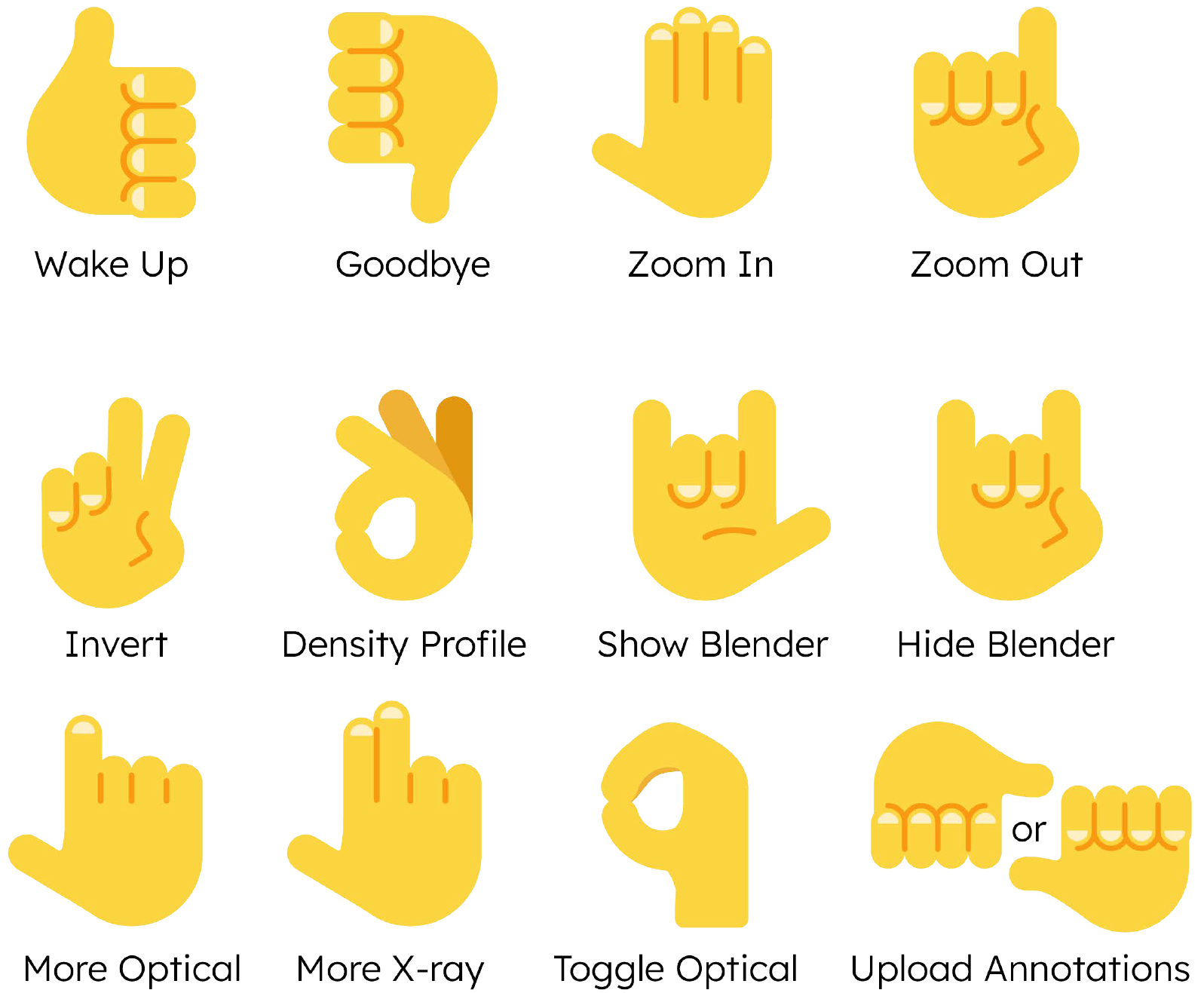

Voice Control

  • Innovative speech recognition technology for true hands-free navigation

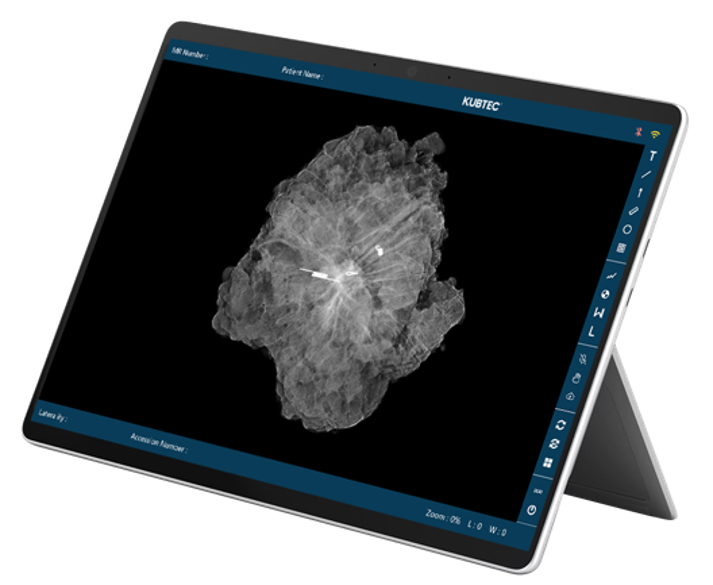

Included Pablo® Tablet

  • Conveniently access your images and annotation tools anywhere in the gross room, helping ensure a smooth transition to the grossing station and beyond

HD Optical camera

  • To see the specimen(s) and use for the Image Blender
    (patented and solely available to KUBTEC instruments)

Magnification levels of 1.3x, 1.7x, 2x, 3x

  • To see finest details in the specimen(s) and use for the Image Blender

Automatic Specimen Alert

  • Get alert that specimen needs to be removed

PACS & LIS integration

  • Review images anywhere and anytime

5-micron microfocus X‑ray

  • See the smallest surgical clips or micro-calcifications in specimens

Product name

KUBTEC Picasso Plus 2D Imaging System
KUBTEC Picasso Plus 2D Specimen Radiography System (Benchtop)

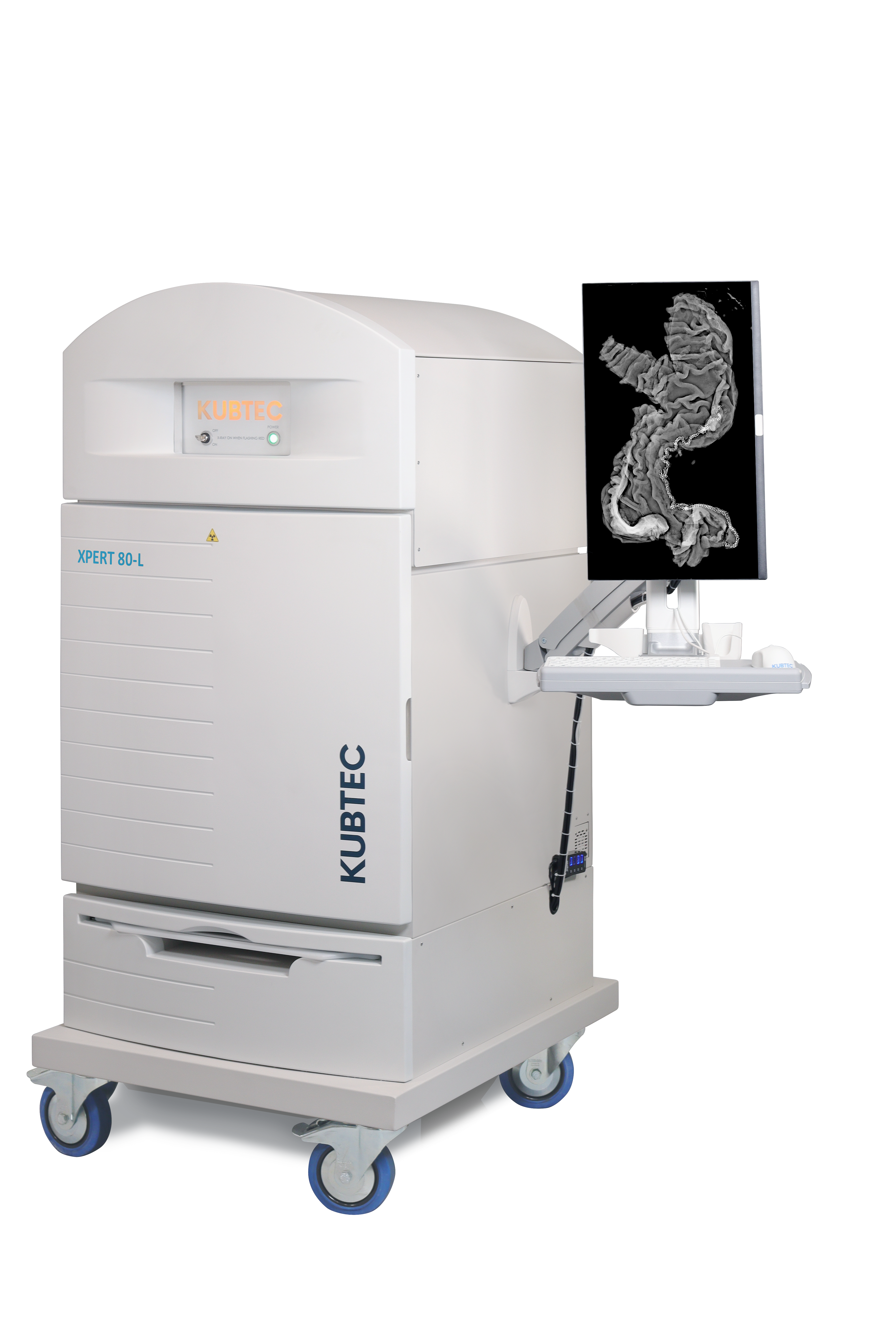

XPERT 80-L 2D Specimen Radiography System

Product code

K0025C01
K0025C02
K0008C01

X-ray detector

10” x 12” (24 x 30 cm) - K0025C01
10” x 12” (24 x 30 cm) - K0025C02
17” x 17” (43 x 43 cm) - K0008C01

HD optical camera

Standard

Magnification levels

1.3x, 1.7x, 2x, 3x

Dimensions and weight

KUBTEC Picasso Plus 2D Imaging System:
24" L x 24" W x 64.5" H
60 x 60 x 164 cm
310 lbs (140 kg)

KUBTEC Picasso Plus 2D Specimen Radiography System (Benchtop):
24.5" L x 18.5" W x 37" H
62 x 47 x 94 cm
205 lbs (93 kg)

Product code

Product name and quantity

C10-026

24-inch Clinical Touch Screen Monitor Eonis C 2MP-24": one MDRC-2324 Color Review Display, High brightness-White, K9350071; for KUBTEC XPERT® 80/80-L

C16-003

USB Hub; for KUBTEC XPERT® 80

A20 - 1260

Replacement Magnification Tray; for KUBTEC PICASSO® Plus

0137

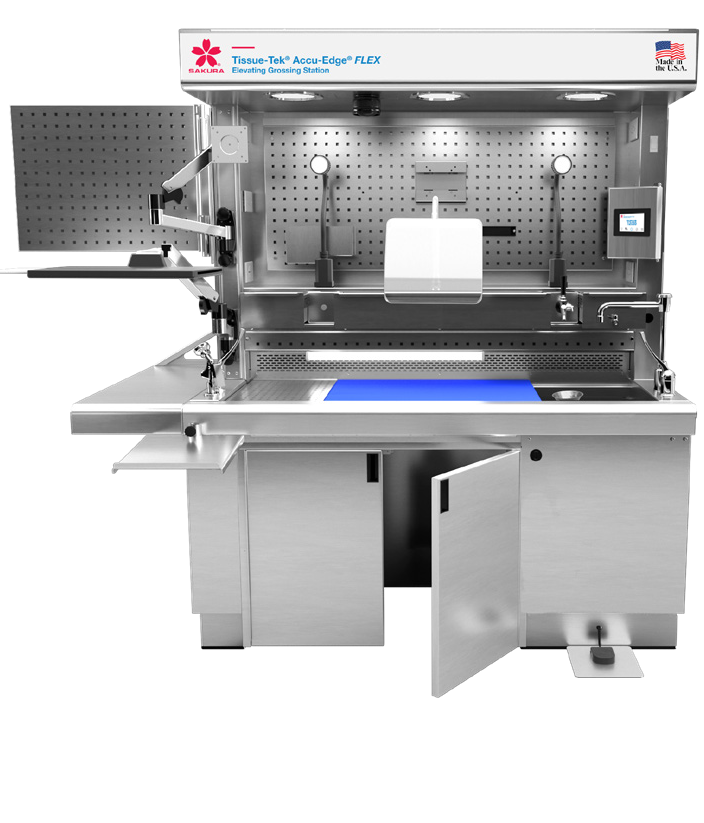

Tissue-Tek® Accu-Edge® PathPRO™ Grossing Station, Elevating; 110 VAC, 60 Hz, 15 A

0115

Tissue-Tek® Accu-Edge® Grossing Station, Pathology Workstation; 110 VAC, 60 Hz, 15 A

4800

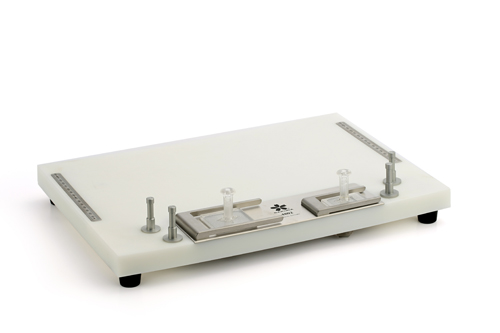

Tissue-Tek® Accu-Edge® Grossing Board; 1 grossing board, 1 each 1.5, 2.0, 2.5, 3.0 mm depth gauges, and 2 tissue tampers/kit

4802

Tissue-Tek® Accu-Edge® Grossing Wells; 1 grossing wells platform, 1 each 1.5, 2.0, 2.5, 3.0 mm depth gauges, and 2 tissue tampers/kit

9155

Tissue-Tek® FormaGO® Formalin Absorption Pads, Small; 1,000 pads/case

9156

Tissue-Tek® FormaGO® Formalin Absorption Pads, Medium; 200 pads/case

9157

Tissue-Tek® FormaGO® Formalin Absorption Pads, Large; 100 pads/case

4785

Tissue-Tek® Accu-Edge® Trimming Blades; 50 blades/box/a>

4786

Tissue-Tek® Accu-Edge® Trimming Handle, Short Straight

4791

Tissue-Tek® Accu-Edge® Dissecting Scalpel Handle

4793

Tissue-Tek® Accu-Edge® Dissecting Scalpel Blades #62, Pointed Tip; 20 blades/case

4792

Tissue-Tek® Accu-Edge® Dissecting Scalpel Blades #61, Curved Tip; 20 blades/case

4803

Tissue-Tek® Accu-Edge® Grossing Fork, 1.5 mm; 1 each, grossing fork, 1.5 mm and cleaning brush/kit

4804

Tissue-Tek® Accu-Edge® Grossing Fork, 2.0 mm; 1 each, grossing fork, 2.0 mm and cleaning brush/kit

4807

Tissue-Tek® Accu-Edge® Grossing Fork, 2.5 mm; 1 each, grossing fork, 2.5 mm and cleaning brush/kit

PI-HDG

PAXcamHD Gross Imaging Camera plus Software

9154

Tissue-Tek® FormaGO® Formalin Absorption Wipes; 100 wipes/case

9151

Tissue-Tek® FormaGO® Formalin Neutralizer; 16 pouches, each 0.75 kg /case

9158

Tissue-Tek® FormaGO® Formalin Absorption Granules; 2 jars, each 900 g/case

9159

Tissue-Tek® FormaGO® Formalin Neutralizer Container; 1 bottle, 2.5 gal (9.5 L) capacity

9152

Tissue-Tek® FormaGO® Formaldehyde Analysis Kit; 2 bottles Test Reagent, each 25 mL and 100 Formaldehyde Test Strips/kit

9150

Tissue-Tek® FormaGO® Formalin Starter Kit; 4 pouches (9151), 25 wipes (9154), 100 pads (9155), 20 pads (9156), 10 pads (9157), 1 jar (9158), 1 empty bottle (9159)/kit
