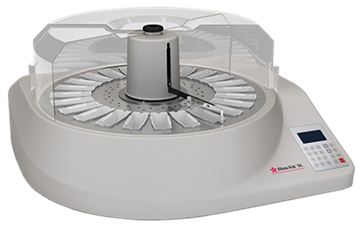

Histo-Tek® SL Slide Stainer

The Histo-Tek SL Slide Stainer standardizes the staining process to optimize quality while reducing errors.  It allows for up to 15 programmable staining protocols with up to 35 st

A histology stainer that is standardizing the staining process

The Histo-Tek® SL Slide Stainer is an automated slide stainer offering a new level of convenience and standardization for your low-volume laboratory needs, all at a low total cost of ownership.

The Histo-Tek SL Slide Stainer standardizes the staining process to optimize quality while reducing errors.  It allows for up to 15 programmable staining protocols with up to 35 steps.   The multi-directional robotic arm enables either progressive or regressive staining protocols and the 20 or 30-slide racks option make it ideal for low to medium volume laboratories.  It is a simple and intelligent Histology stainer for unsurpassed productivity - slide after slide.  With it, your lab can run H&E, PAP, frozen sections or special stains. A total of 24 reagent containers, including 2 independent wash stations, enable continuous loading of slide racks and accommodate multiple stain protocols. Optional special stain containers are designed to reduce reagent volumes and costs.  Additional relevant features of the slide stainer include: built-in fume extraction to improve lab staff safety, and an easy exchange of protocols through USB to standardize protocols throughout the lab while using multiple units.  The Histo-Tek SL Slide Stainer is designed for automation at your convenience in mind, making it one of the slide stainers with the highest levels of reliability and lowest maintenance on the market.

Features

     Benefits

Compact footprint
  • Fits on any laboratory workbench
Continuous load
  • Increases throughput
Special stain reservoirs
  • Enables user to run H&E or special stains
  • Reduces reagent volumes and costs
User-friendly display
  • Contrast can be adjusted to obtain clearest text based on the users' viewing angle
User-defined programming
  • Supports standardization of staining with full control
Built-in fume extraction
  • Improves safety of laboratory personnel
USB data port
  • Easy exchange of protocols throughout the lab
Product name Histo-Tek® SL Slide Stainer
Product code 1900
Applications H&E, special stains, PAP, frozen sections
Dimensions 33 (W) x 31 (D) x 16 (H) inches
81 (W) x 79 (D) x 41 (H) cm
Weight 55 lbs (25 kg)

Number of reservoirs

Start - 1 station
Reagents - 22 reservoirs
Wash - 2 stations

Capacity

Reagent volume - 350 mL
Staining protocols - 4 runs continuously loading and simultaneously running
Baskets - 20 or 30 slide baskets
Loading - up to 30 slides per run
Certifications IEC 61010-1 2nd Ed.
Regulatory status IVD, FDA Class I

Product code

Product name and quantity

1900 Histo-Tek® SL Slide Stainer; 115 VAC, 50/60 Hz
1901 Histo-Tek® SL 30-Slide Basket; 4/case
1902 Histo-Tek® SL 30-Slide Basket Adapter
1903 Histo-Tek® SL 20-Slide Basket Adapter
1905 Histo-Tek® SL Solution Reservoir, 350 mL
1906 Histo-Tek® SL Wash Reservoir, 350 mL
1907 Histo-Tek® SL Reservoir Lid, 350 mL
1908 Histo-Tek® SL Special Stain Reservoir
1909 Histo-Tek® SL 10-Slide Basket Adapter
1910 Histo-Tek® SL Drain Hose
1911 Histo-Tek® SL Water Supply Hose Set
1912 Histo-Tek® SL Carbon Filter; 2/case
1913 Histo-Tek® SL Exhaust Adapter and Hose
4740 Tissue-Tek Film® Automated Coverslipper
6500 Tissue-Tek® Glas™ g2 Glass Coverslipper
