Redefining cassette tracking with cross-check

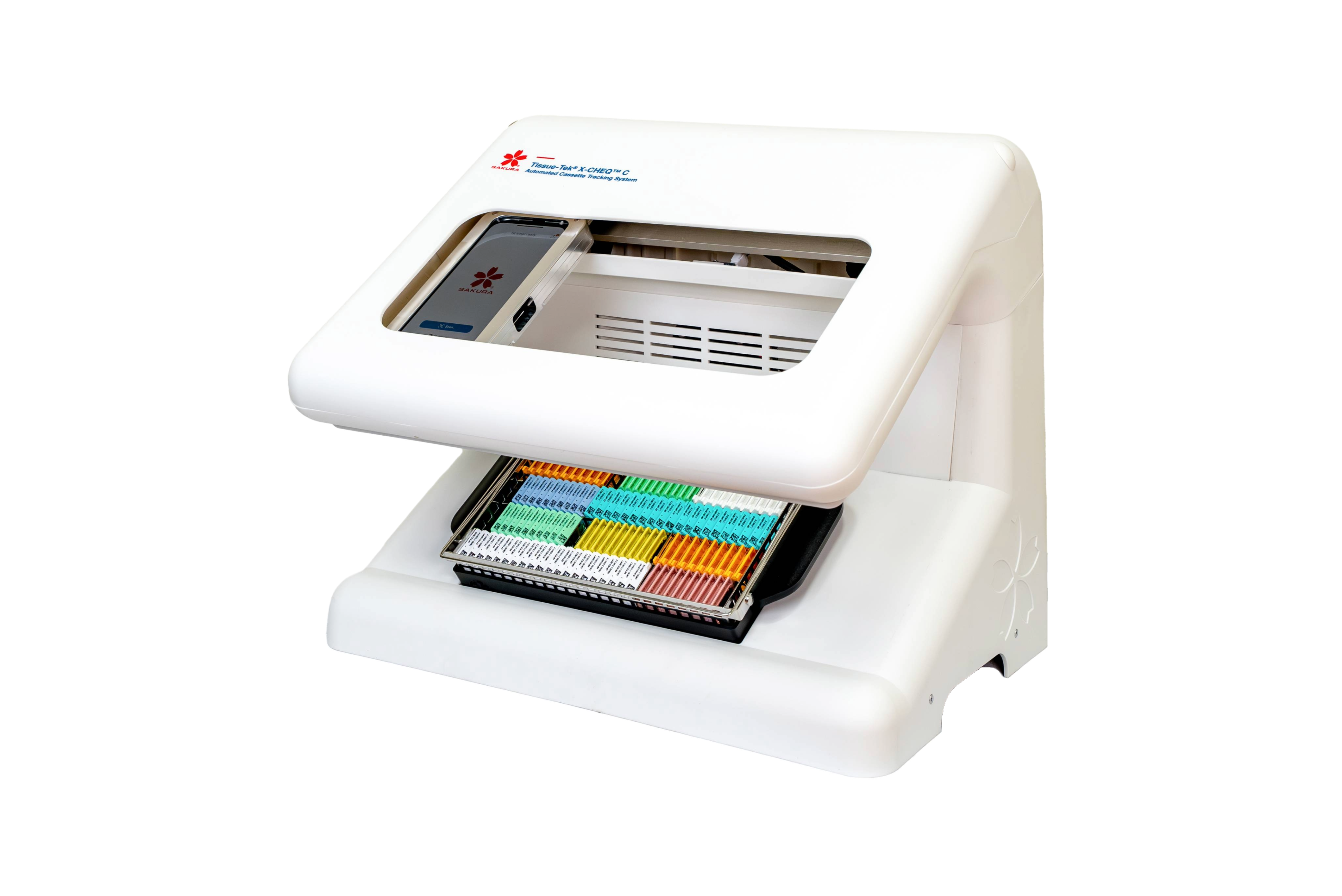

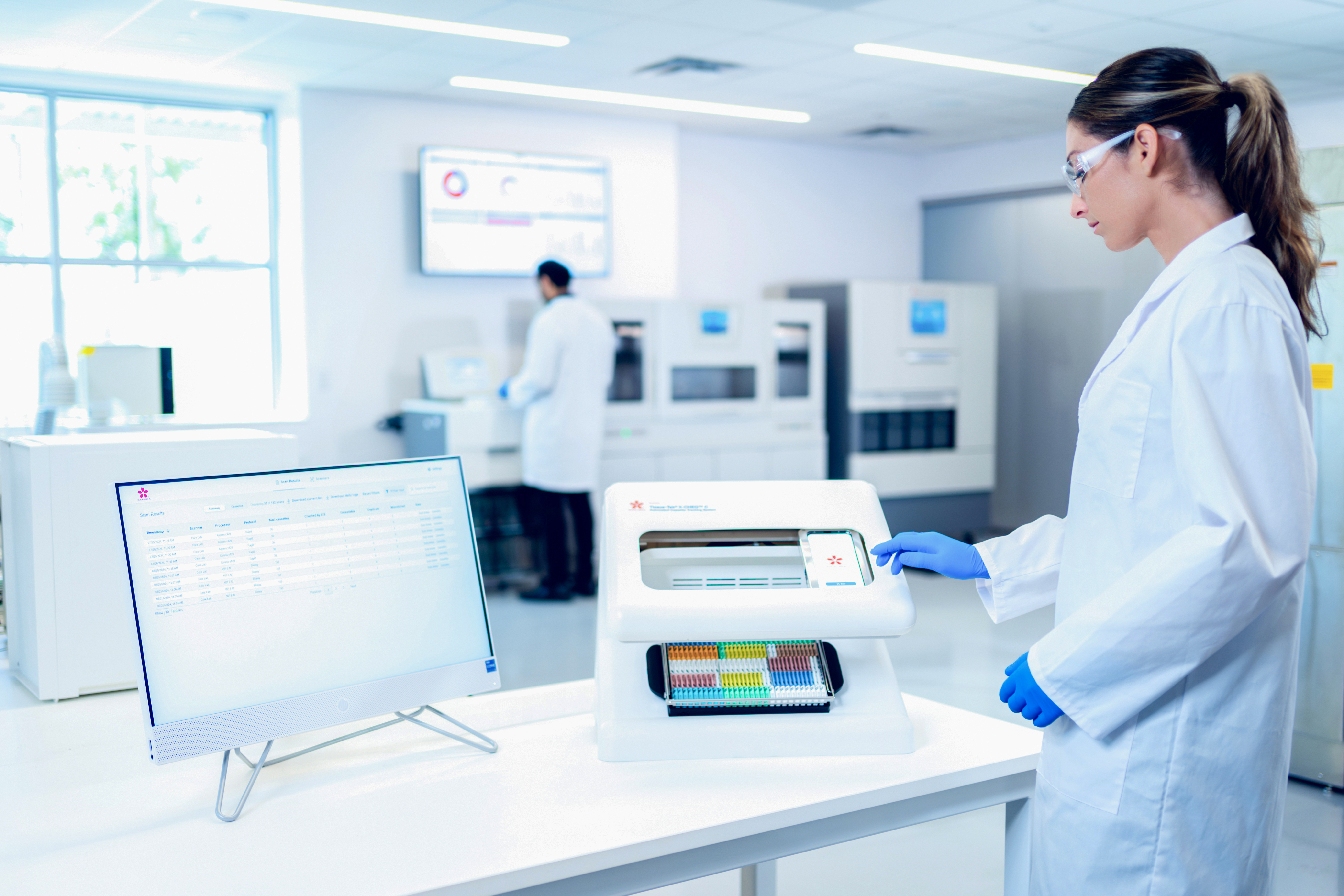

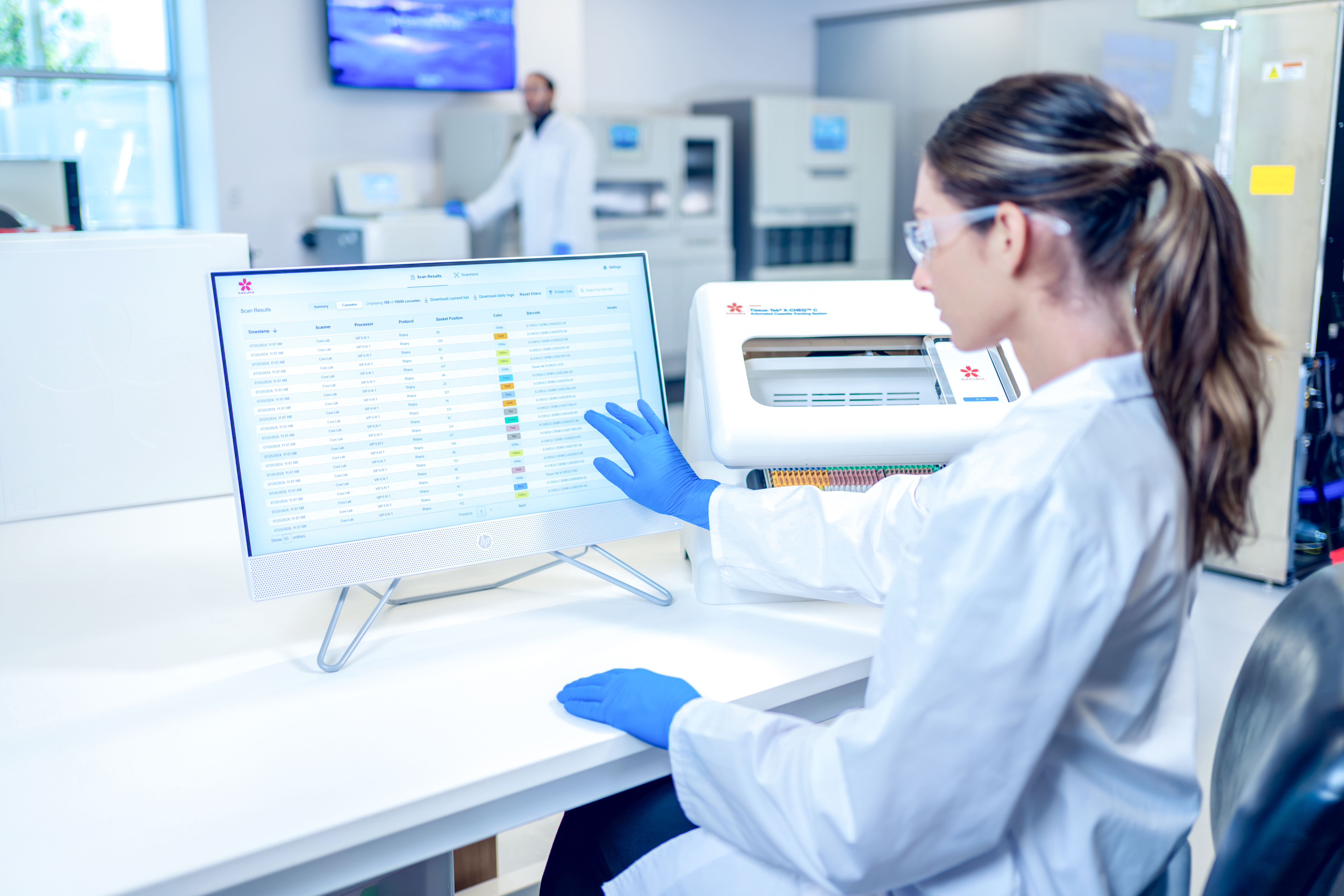

The Tissue-Tek® X-CHEQ™ C (Cross-Check C) is designed to revolutionize laboratory safety, efficiency, and accuracy by eliminating the "black holes" in tracking tissue cassettes when sent between locations or before tissue processing. With its small footprint and simple user interface, the X-CHEQ C can be used in laboratories of any type and size that want to harness the power of tracking and tracing barcoded cassettes.
Safety
The Tissue-Tek X-CHEQ C is the first and only automated cassette tracking system that can cross-check cassettes at the individual cassette level with assigned tissue processing protocols in the Laboratory Information System (LIS) to reduce risks at processing. The X-CHEQ C also automatically checks every cassette in the scan for duplicate or unreadable barcodes, further reducing risks and rework while enhancing overall laboratory safety and reliability. The X-CHEQ C was designed with user safety in mind as well. With an onboard fan and filter system, the X-CHEQ C pulls hazardous formalin fumes away from the user during scanning.
Efficiency

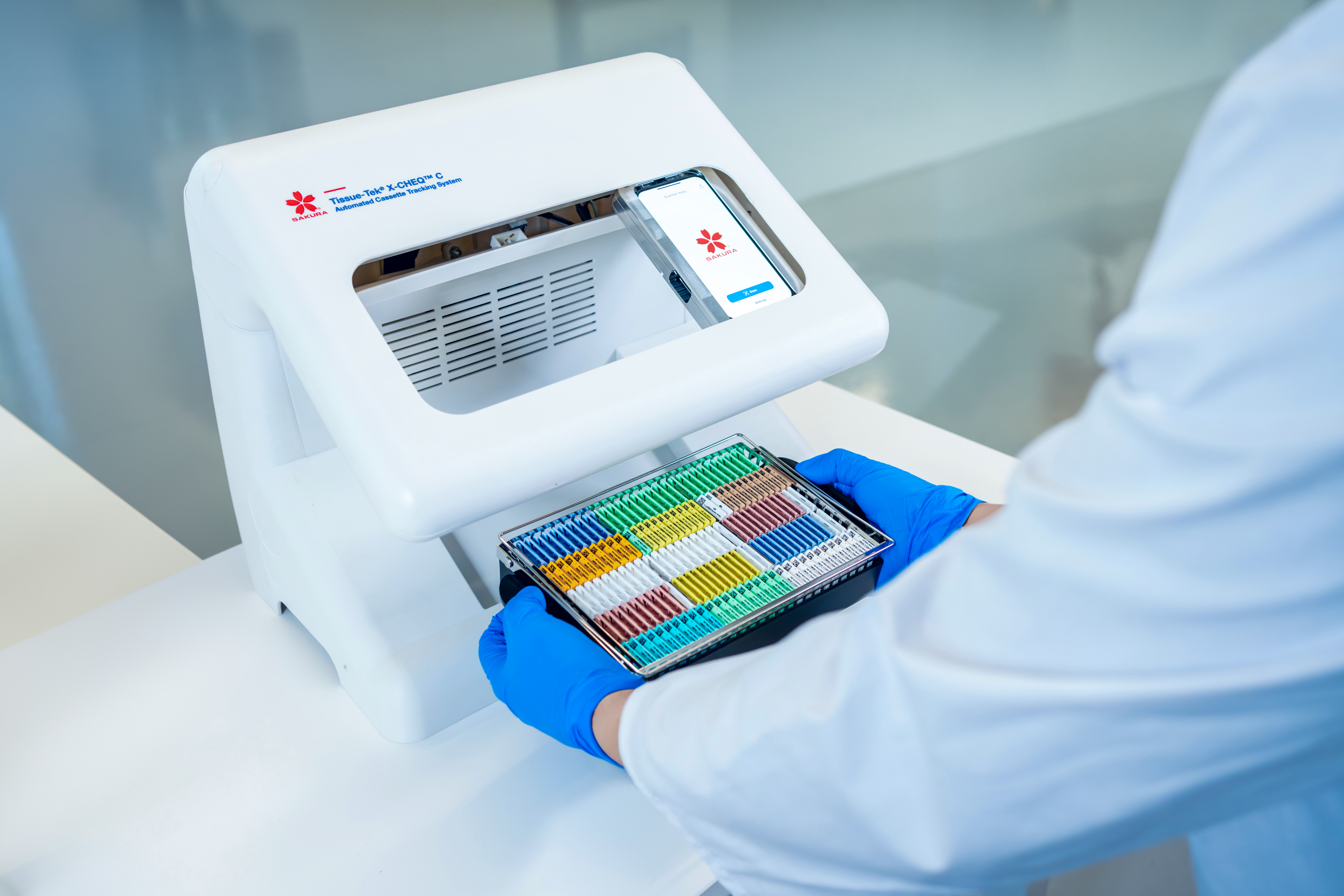

Safety is extremely important, but so is efficiency and functionality. The X-CHEQ C can scan a full processor basket of up to 150 cassettes in just 40 seconds, drastically reducing manual scanning time and labor. The device is also fully compatible with Tissue-Tek® 20-Cassette Magazine options and can scan up to four (4) magazines simultaneously. The X-CHEQ C captures a full-color, high-resolution image during scanning and is the first and only automated cassette tracking system to automatically detect and track cassettes by color, enabling laboratories to easily and quickly identify and search for priority cassettes.
Accuracy

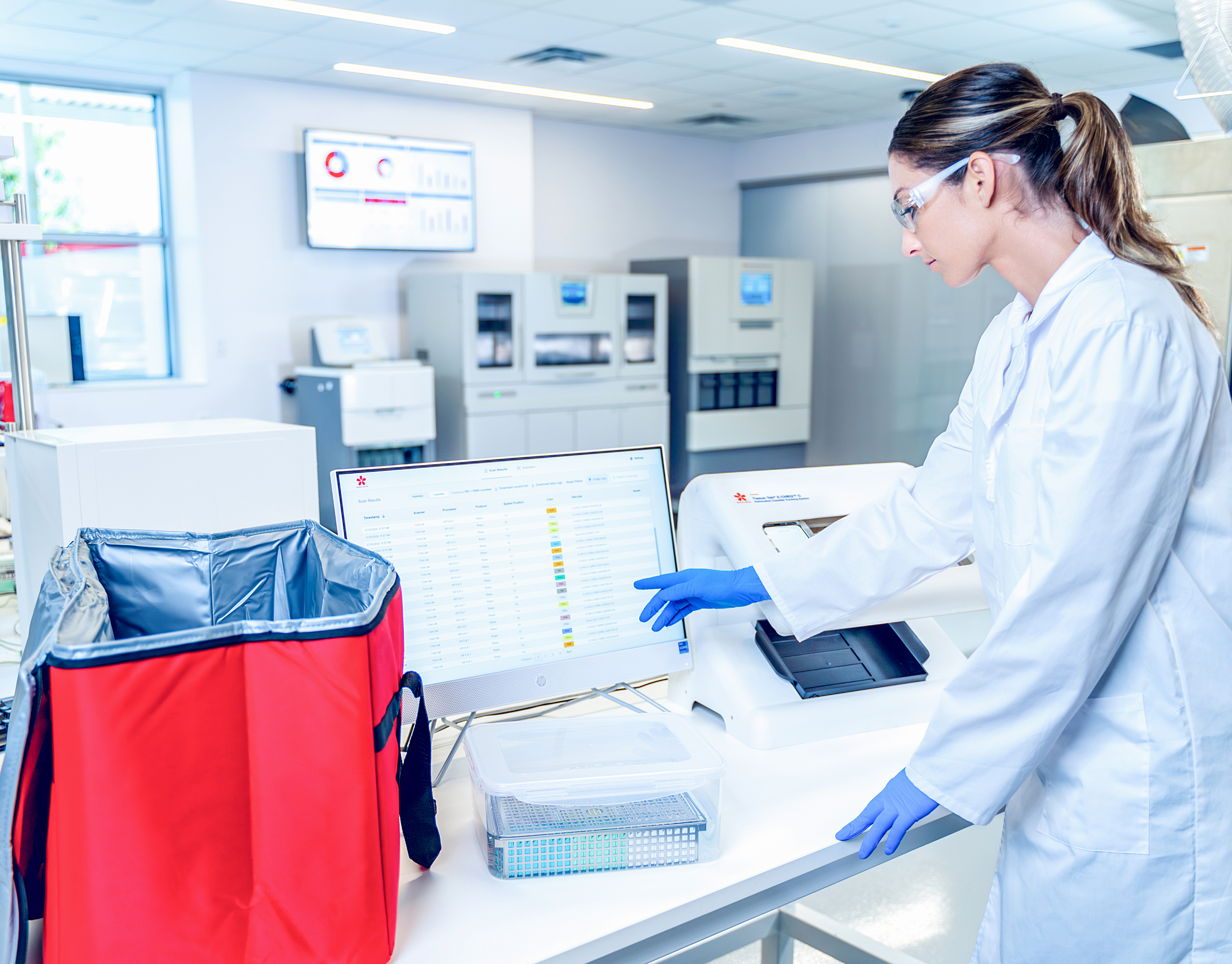

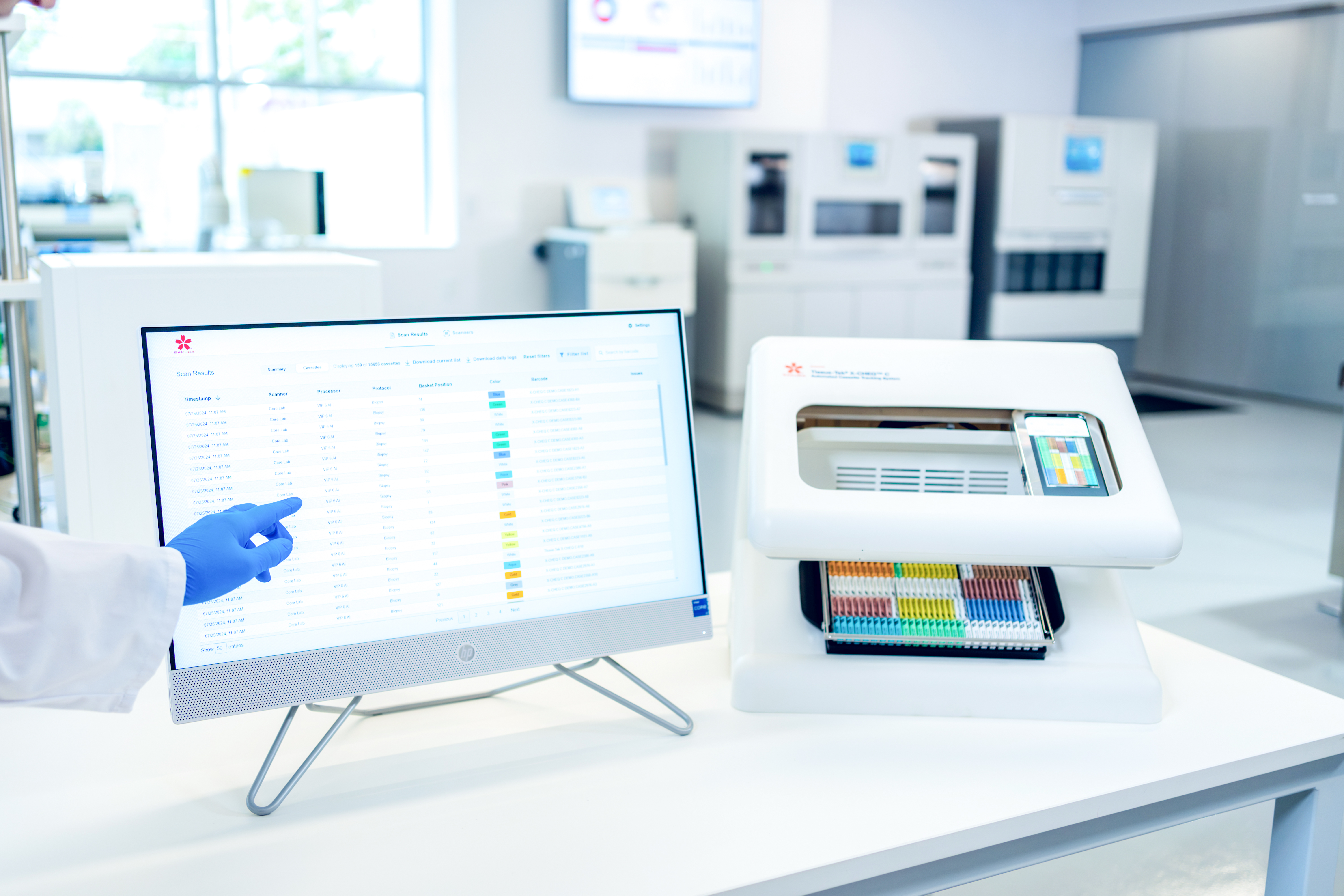

The Tissue-Tek X-CHEQ C Server Software provides scan results for connection to the LIS, ensuring data accuracy and easy access across platforms. The network-installed software requires no outside internet connections, so all data is fully protected by the laboratory’s cyber security protocols. This also enables the reporting software to be quickly and easily accessed through any network-enabled and secure PC, whether in the laboratory or the supervisor or manager’s office. The Tissue-Tek X-CHEQ server software allows laboratories to view, search, or filter cassette scanned data, view the high-resolution images of cassette scans, or generate reports even without an LIS connection, giving laboratories quick and easy access to important scan information for data analysis or troubleshooting.
Features
|
Benefits
|
| Automated scanning of cassettes in processing baskets and magazines in 40 seconds |
- Eliminates manual scanning with improved time and efficiency
|
| Automatic cross-check of assigned processing protocols with the LIS |
|
| Connect and share data with the LIS |
- Ensures data accuracy and access across platforms
|
| Automatically detect duplicate and unreadable barcode errors |
- Enhanced error detection and reduced rework
|
| Automatic cassette color detection |
- Enhanced cassette identification and reporting capabilities
|
| Full-color, high-resolution image |
- Enhanced record-keeping and identification
|
| Custom scan reports |
- Easily access data for workflow management and tracing for troubleshooting
|
| Fume control system |
- Mitigate exposure to formalin fumes
|
| Network-installed PC software |
- Convenient accessibility protected on the laboratory network
|
| Small footprint |
- Simple and easy to find space in any laboratory
|
| Product name |
Tissue-Tek® X-CHEQ C Automated Cassette Tracking System |
| Product code |
8080 |
| Application |
Scan barcoded cassettes and Tissue-Tek® Paraform® Frames in baskets or magazines for the tracking, checking, and reporting of cassette/frame information |
| Dimensions |
17.9 (W) x 13.2 (D) x 14.6 (H) inches
45.6 (W) x 33.5 (D) x 37.0 (H) cm |
| Weight |
19.6 lbs (8.9 kg) |
| Power requirements |
100-240 VAC, 50/60 Hz, 1.5 A |
| Capacity |
1x Tissue-Tek VIP® 150 Cassettes Basket or similar
4x Tissue-Tek AutoTEC® a120 20-Cassette Magazine |
| Scan time |
40 seconds |
| Error detection |
Unreadable barcodes
Duplicate barcodes
Mismatched protocols
Mismatched processors |
| Cassette color identification |
Automated cassette color detection |
| Imaging |
Full-color, high-resolution image capture |
| Filter system |

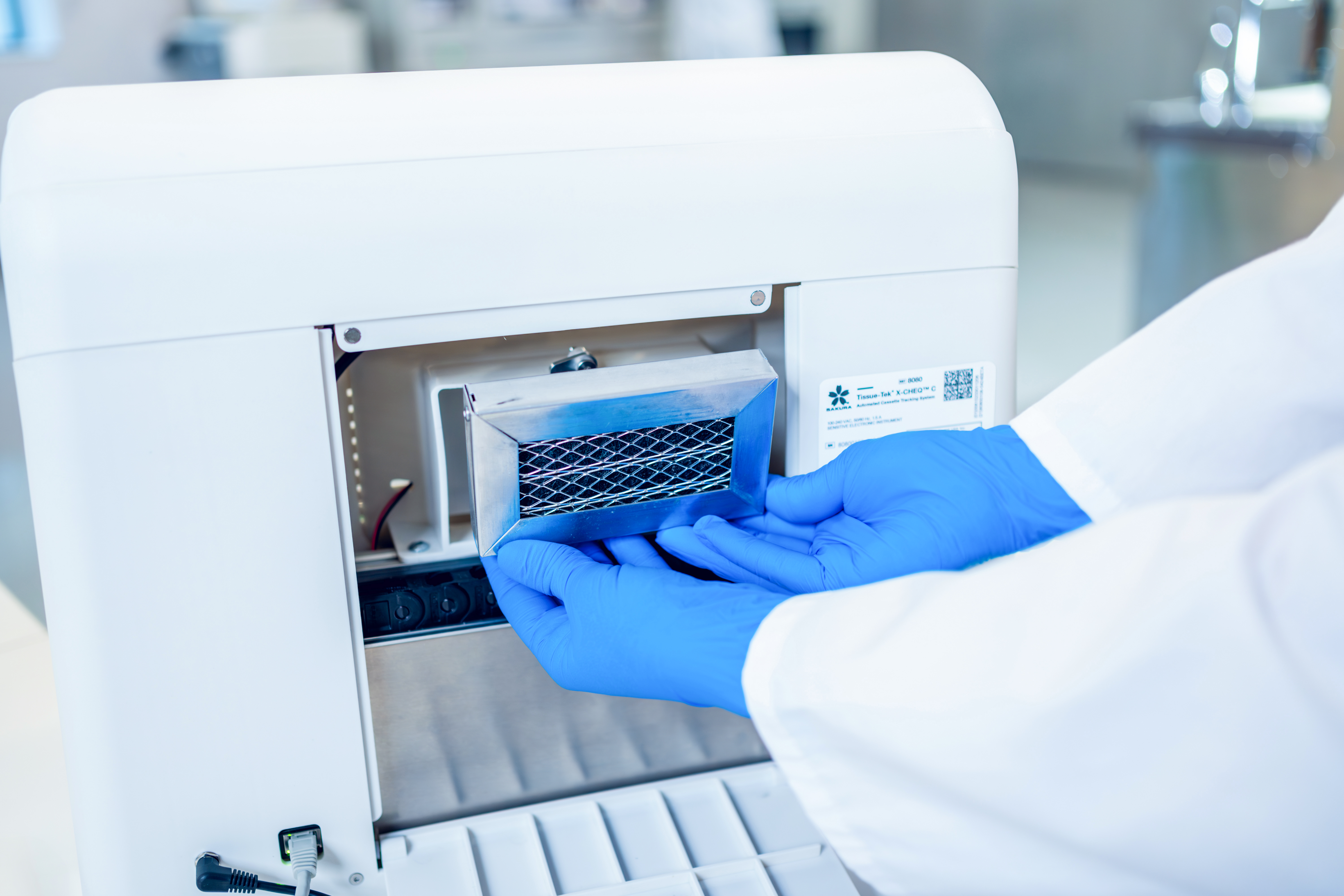

60 cfm fan and replaceable filter |
| User interface display |

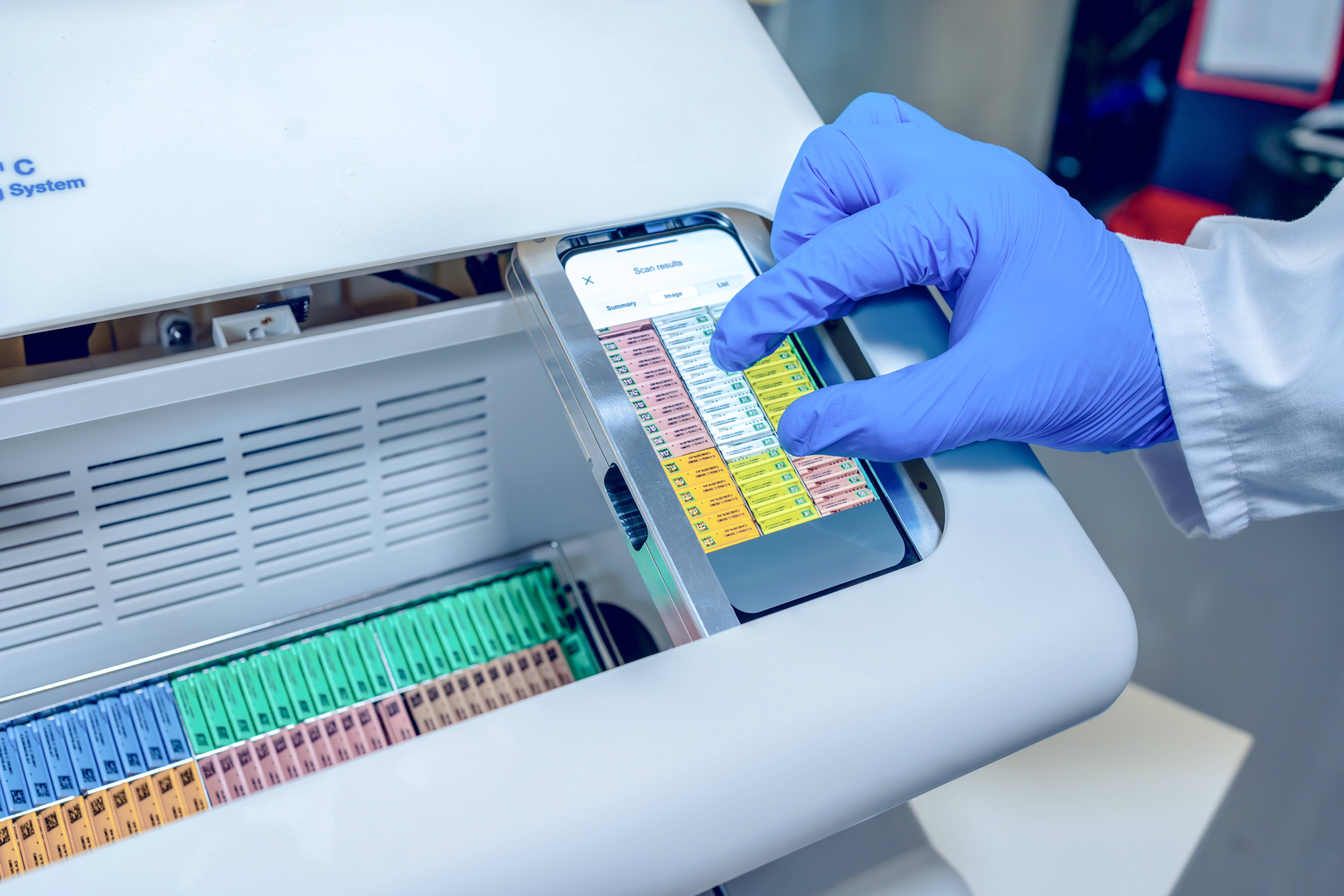

Apple® iPhone® 14 |
| Data interface |
Ethernet port for network connection |
| LIS integration |
CSV file communication to network |
| Reporting |
Filter and generate reports through Tissue-Tek X-CHEQ C Server Software |
| Regulatory information |
General laboratory equipment |
