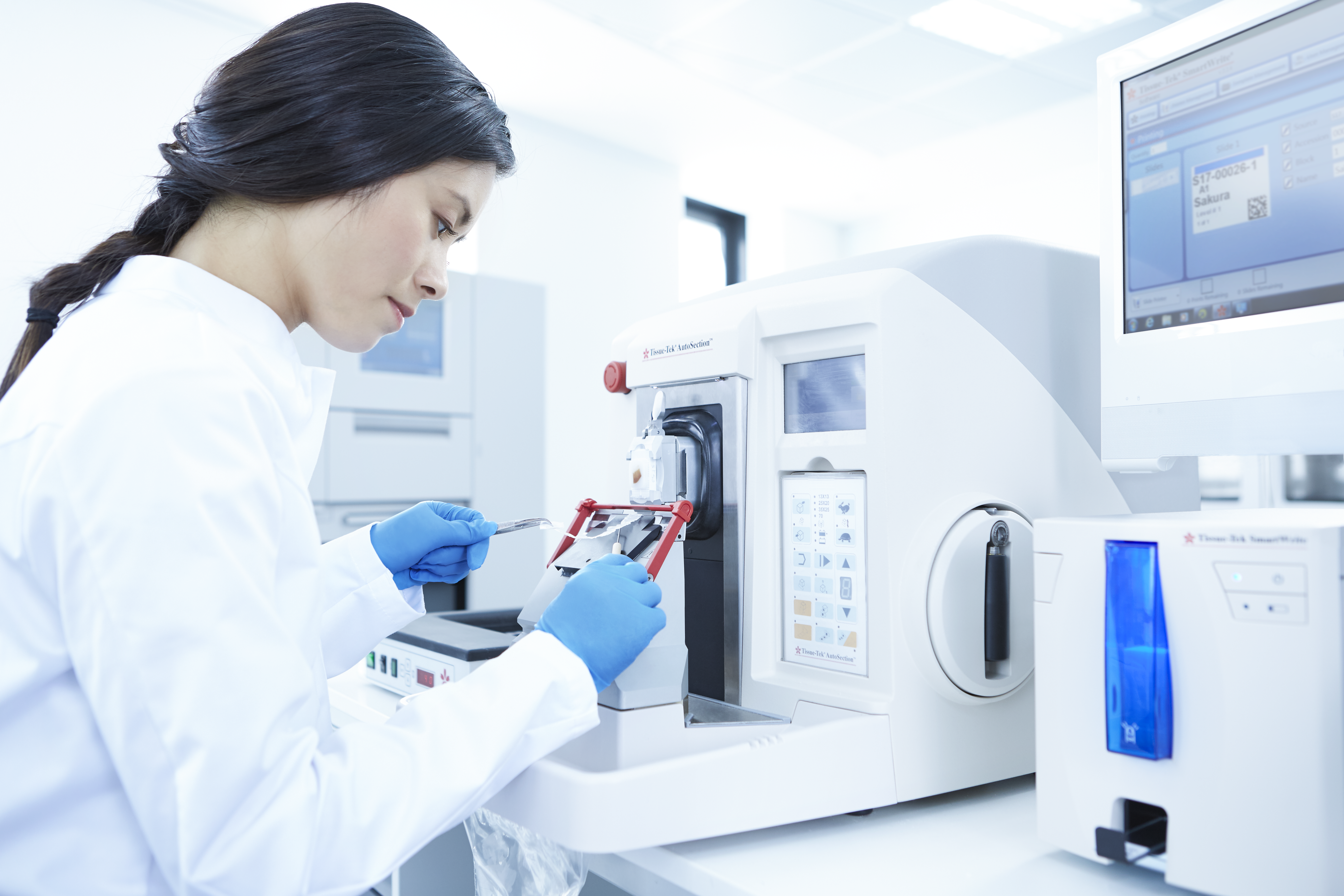

A fully automated SMART microtome
View Interactive Brochure

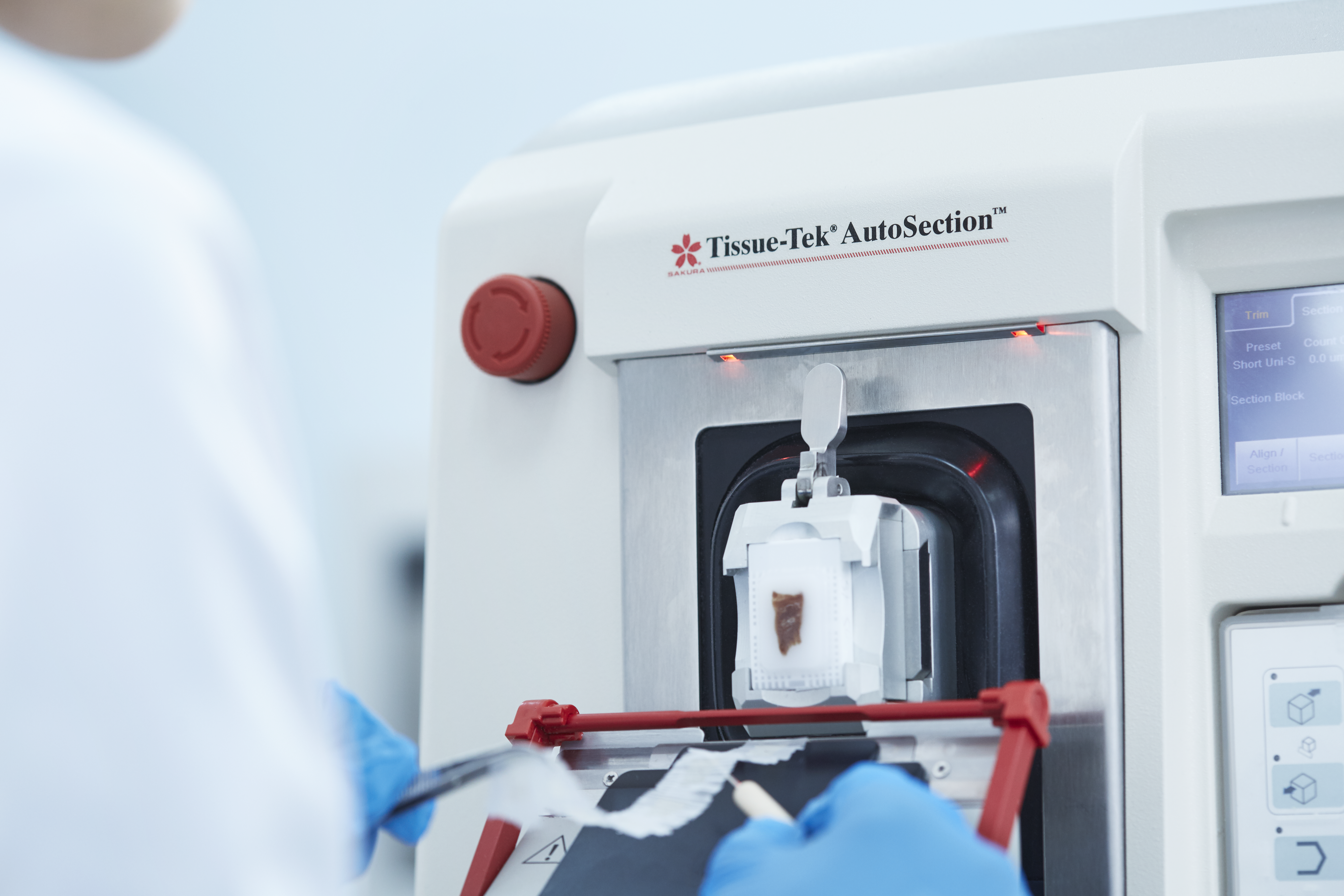

Tissue-Tek AutoSection® delivers the next level in precision sectioning.
Tissue-Tek AutoSection provides one-touch trimming and programmable sectioning with a host of built-in safety features. AutoSection automatically orients the block to the blade edge, using patented sensing and automated 3D specimen holder technology for precise XYZ orientation. It standardizes block orientation - even if the block was trimmed or sectioned on a different microtome - saving valuable tissue and technician time. With AutoTrim™, the AutoSection trims blocks automatically in just seconds with one-touch operation. This tissue-preserving feature is optimized for Tissue-Tek® Paraform® Sectionable Cassette System, although it also accommodates most common cassettes.
Multiple exclusive built-in safeguards make the Tissue-Tek AutoSection the leader in automated microtome user safety. One-touch trimming and sectioning eliminate repetitive hand wheel motions and reduce the risk of musculoskeletal disorders, while the sliding dispenser feature of Accu-Edge® blades eliminates direct handling of blades.
Compared to manual and motorized microtomes the SMART AutoSection showed the highest precision in section thickness using IHC staining and digital imaging technology.* Read more about Robotic and Semi-Automated Microtomy Can Decrease Variability in Her2 Staining Intensity. Programmable sectioning, it enables laboratories to implement standardized protocols for specific tissue or block types.
* Poster USCAP 2017- Robotic and semi-automated microtomy can decrease variability in HER2 staining intensity.
Features
|
Benefits
|
| AutoAlign™ function |
- Saves time and tissue with block to blade auto alignment
|
| AutoTrim™ function |
- Saves time by facing blocks in 15 seconds or less
|
| AutoSection function |
- Enables microtomy at the touch of a button
- Reduces Repetitive Motion Disorder in the lab
|
| 3D Chuck and Sensing Plate |
- Optimizes block alignment to preserve tissue during sectioning
|
| Programmable sectioning |
- Standardizes sectioning throughout the lab
|
| Wireless hand held remote control |
- Enables operation from either side of the instrument
|
| Product names |
Tissue-Tek AutoSection® Automated Microtome |
| Product codes |
5010 |
| Application |
Sectioning of paraffin-embedded specimens for routine and research histology |
| Dimensions |
16.5 (W) x 26.4 (D) x 17.4 (H) inches
42 (W) x 67 (D) x 44 (H) cm |
| Weight (with microtome) |
121 lbs (55 kg) |
| Administrator access |
Password protected |
| Section thickness |
0.5 - 100 microns |
| Trimming thickness |
1 - 200 microns |
| Retraction distance |
No retraction, 20-100 microns |
| Sectioning speed |
10 - 450 mm/second |
| Trimming speed |
10 - 450 mm/second |
| Return speed |
10 - 450 mm/second |
| Typical vertical stroke |
5.2 inches (132 mm) |
| Typical horizontal stroke |
0.37 inches (9.4 mm) |
| Number of presets |
Up to 15 different presets |
| Number of program steps |
Up to 16 steps |
| Number of user preferences |
Up to 32 different preferences |
| 3D Chuck/Specimen Holder |
Vertical and horizontal axes adjustment range ± 4° |
| 3D Chuck/Specimen Holder angle resolution |
0.05° |
| Blade angle |
Fixed |
| Alignment to the blade edge |
±0.05° |
| Alignment distance to the blade |
+/-10 microns |
| User interface display |
4.3” color LCD touchscreen with 480 x 272 pixels |
| Remote |
Bluetooth® wireless remote |
| Date interface |
USB 2.0 |
| Certifications |
UL 61010-1, CAN/CSA C22.2 #61010-1, CAN/CSA C22.2 #61010-2-101, IEC 61010-1:2001, IEC61010-2-101, EMC |
| Regulatory status |
IVD, FDA Class I |
