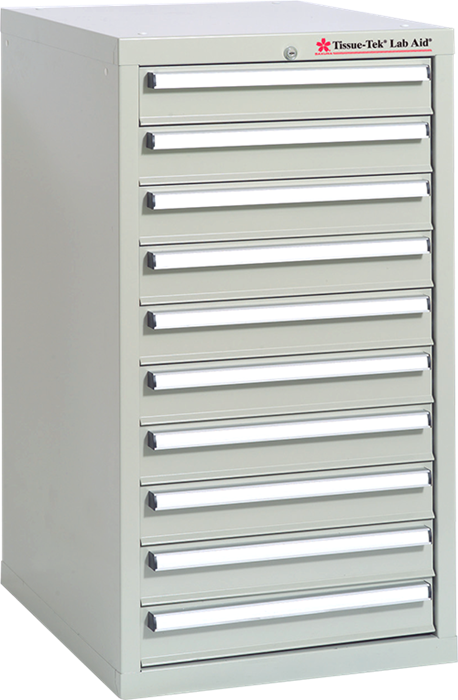

Lab Aid® Ultra™ II Cabinet

A sturdy steel construction ensures long-term use and includes a drawer lock guaranteeing specimen safety.  The convenient removable trays accommodate up to 76,800 microscope slides or 28,160 blo

Safe, secure and trusted lab cabinets

Tissue-Tek® Lab Aid® Ultra™ II Cabinet is a large capacity universal storage unit for slides and blocks with security features.

A sturdy steel construction ensures long-term use and includes a drawer lock guaranteeing specimen safety.  The convenient removable trays accommodate up to 76,800 microscope slides or 28,160 blocks.  These slide and block cabinets can be bolted together and stacked two high for maximum storage capacity.  Accessories include stackable trays with lids for temporary storage and a trolley with lockable wheels for mobile storage system.

Features

     Benefits

Universal tray for blocks and slides
  • Trays are complatible with blocks or slide storage eliminating the need for separate inventories
Cabinet can be locked with key
  • Guarantees specimen safety
Ten reinforced smooth-rolling drawers
  • Easy opening and closing
Drawers open one at a time
  • Prevents tipping
Each drawer front has a plastic covered labeling strip
  • Assures positive identification
Writeable color-coded strips
  • Allows grouping and indexing slides or blocks
Convenient lid for block trays
  • Provides extra protection for blocks and makes the trays stackable for short-term storage of blocks outside the cabinet
Foam inserts for partially filled trays
  • Secures slides and blocks in the proper upright position
Cabinets can be anchored to the wall
  • Provides earthquake protection
Optional heavy-duty trolley
  • Flexibility in storage locaiton
Product name Tissue-Tek® Lab Aid® Ultra™ II Cabinet
Product code 3990
Application Storage of slides and formalin fixed paraffin embedded tissue blocks
Dimensions 23.6 (W) x 29.5 (D) x 43.3 (H) inches
59.5 (W) x 71.3 (D) x 110.0 (H) cm
Weight Empty cabinet: 271 lbs (123 kg)
Filled with 76,800 slides: 1 ,290 lbs (585 kg)
Filled with 28,160 blocks: 685 lbs (310 kg)
Number of drawers 10
Number of trays per drawer 8 for slides or 16 for blocks
Cabinet for slides Up to 76,800 slides (up to 7,680 per drawer)
Cabinet for blocks Up to 28,160 blocks (up to 2,816 per drawer)
Slides per tray Approximately 960 standards slides
Blocks per tray Approximately 176 standard blocks
Rows per tray 4
Tray dimensions Without lid:
4.7 (W) x 12.0 (D) x 1.3 (H) inches
11.9 (W) x 30.5 (D) x 3.3 (H) cm
With lid:
4.8 (W) x 12.2 (D) x 1.8 (H) inches
12.2 (W) x 31.0 (D) x 4.6 (H) cm
Load capacity 1,984 lbs (900 kg)

Product code

Product name and quantity

3990  Tissue-Tek® Lab Aid® Ultra™ II Cabinet

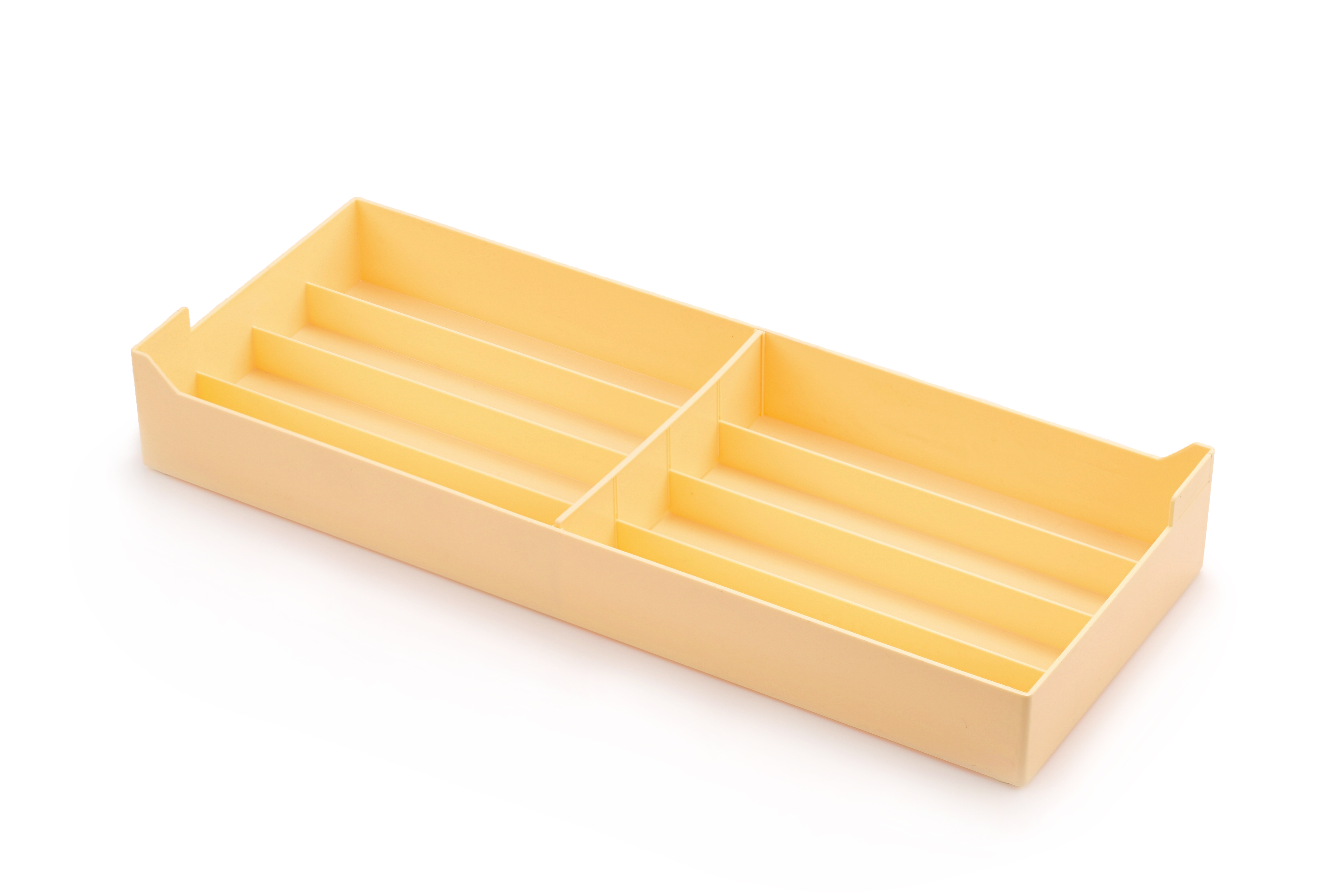

3981 Tissue-Tek® Lab Aid® Ultra™ II Tray; 32/case
3982 Tissue-Tek® Lab Aid® Ultra™ II Tray with Lid (4 rows); 20/case
3983 Tissue-Tek® Lab Aid® Ultra™ II drawer handle coding strips; 100/case

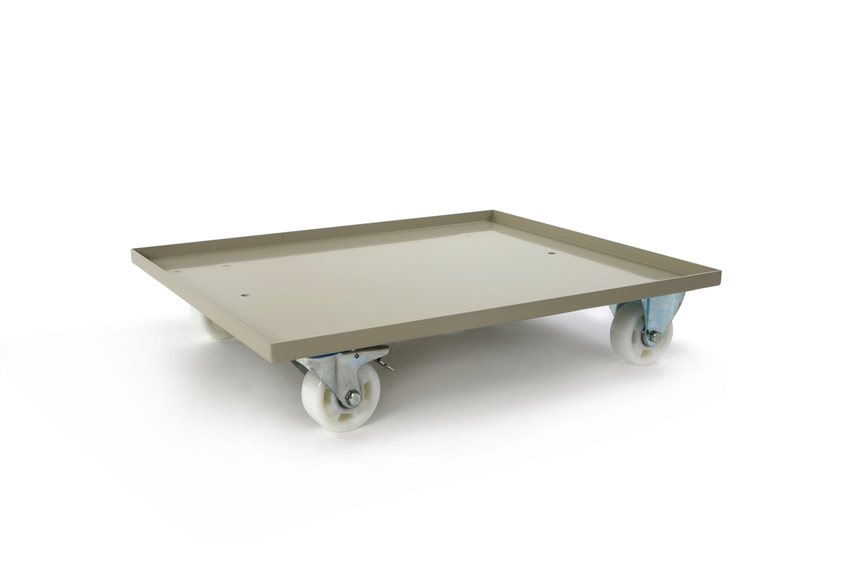

3980 Tissue-Tek® Lab Aid® Ultra™ II Trolley
3993 Foam Inserts; 50/case
3999 Lock Key
4192 Tissue-Tek® Cassette® Cabinet
