Sophisticated simplicity in high-capacity digital slide scanning
The NanoZoomer® S540 is designed to transform high-volume slide digitization with a combination of fast scanning speeds,flexible slide rack compatibility, and intuitive operation. With support for standard slide format racks and continuous loading,the S540 helps laboratories efficiently convert large numbers of glass slides into high-quality digital images with minimaloperator intervention.
Speed
The Nano Zoomer S540 delivers rapid whole slide scanning across both 20× and 40× modes, enabling efficient image capture inapproximately 30 seconds per slide (15x15 mm area). Its optimized scanning performance helps laboratories achieve highthroughput, more than 82 slides per hour, without compromising image quality.
Capacity & Workflow

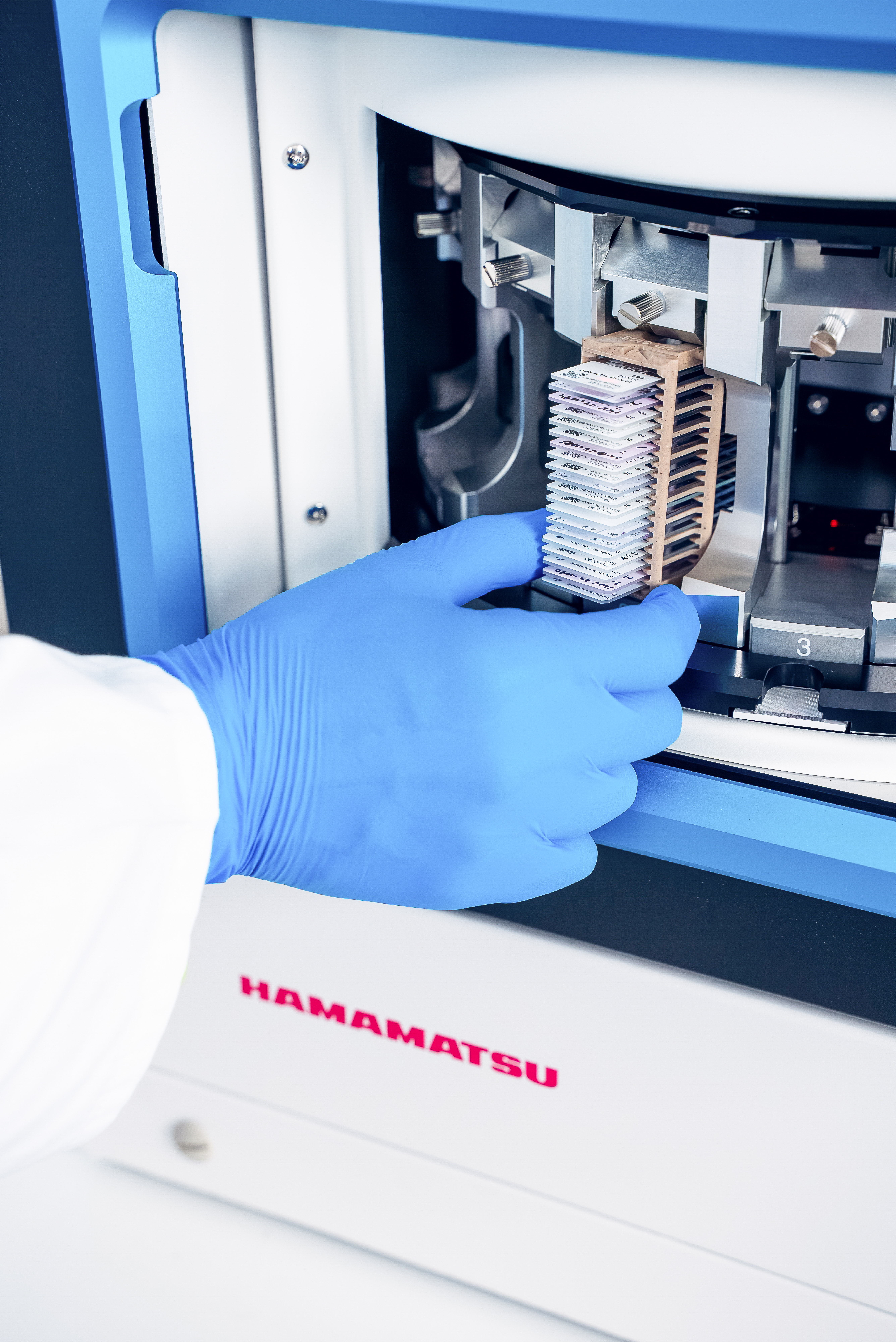

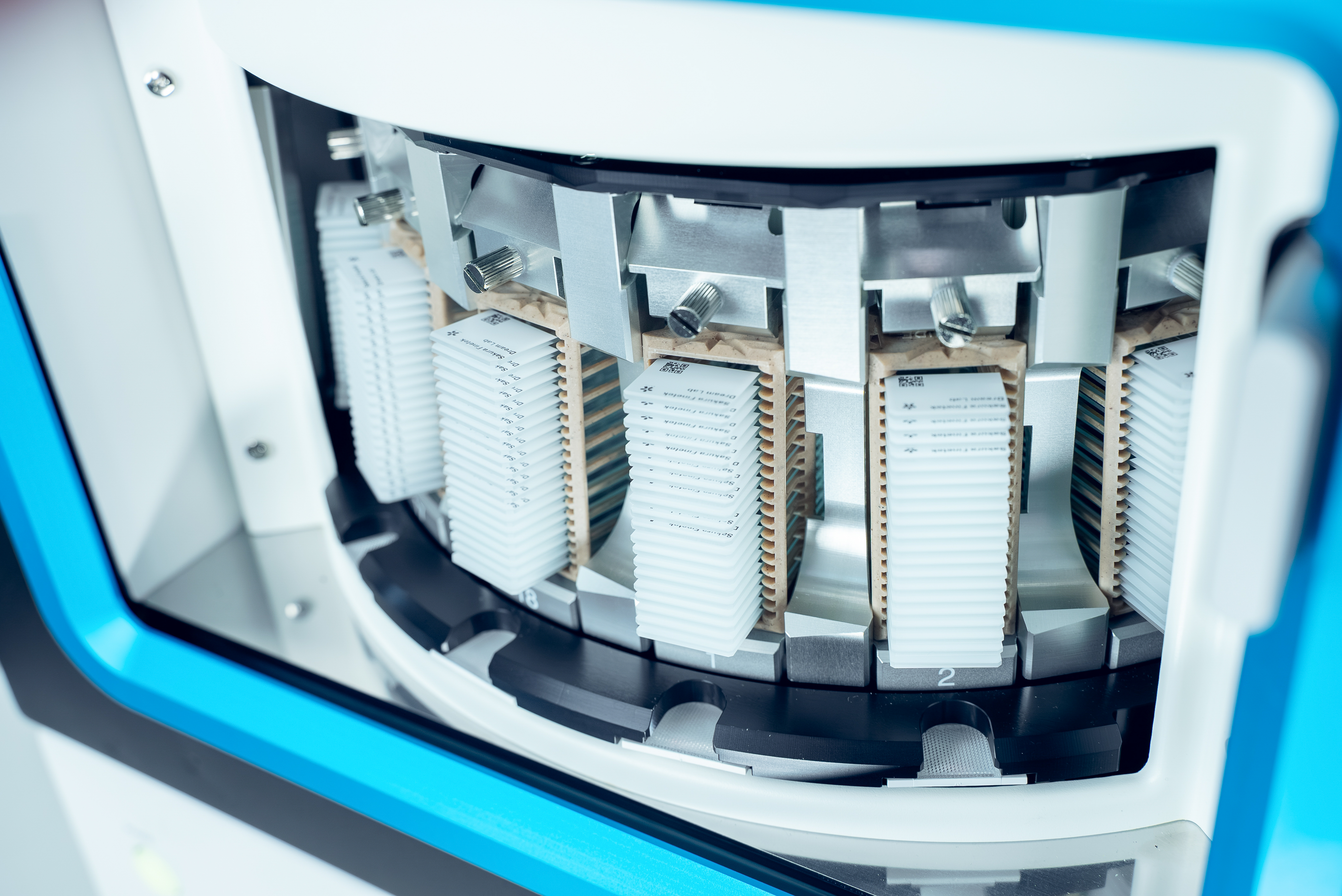

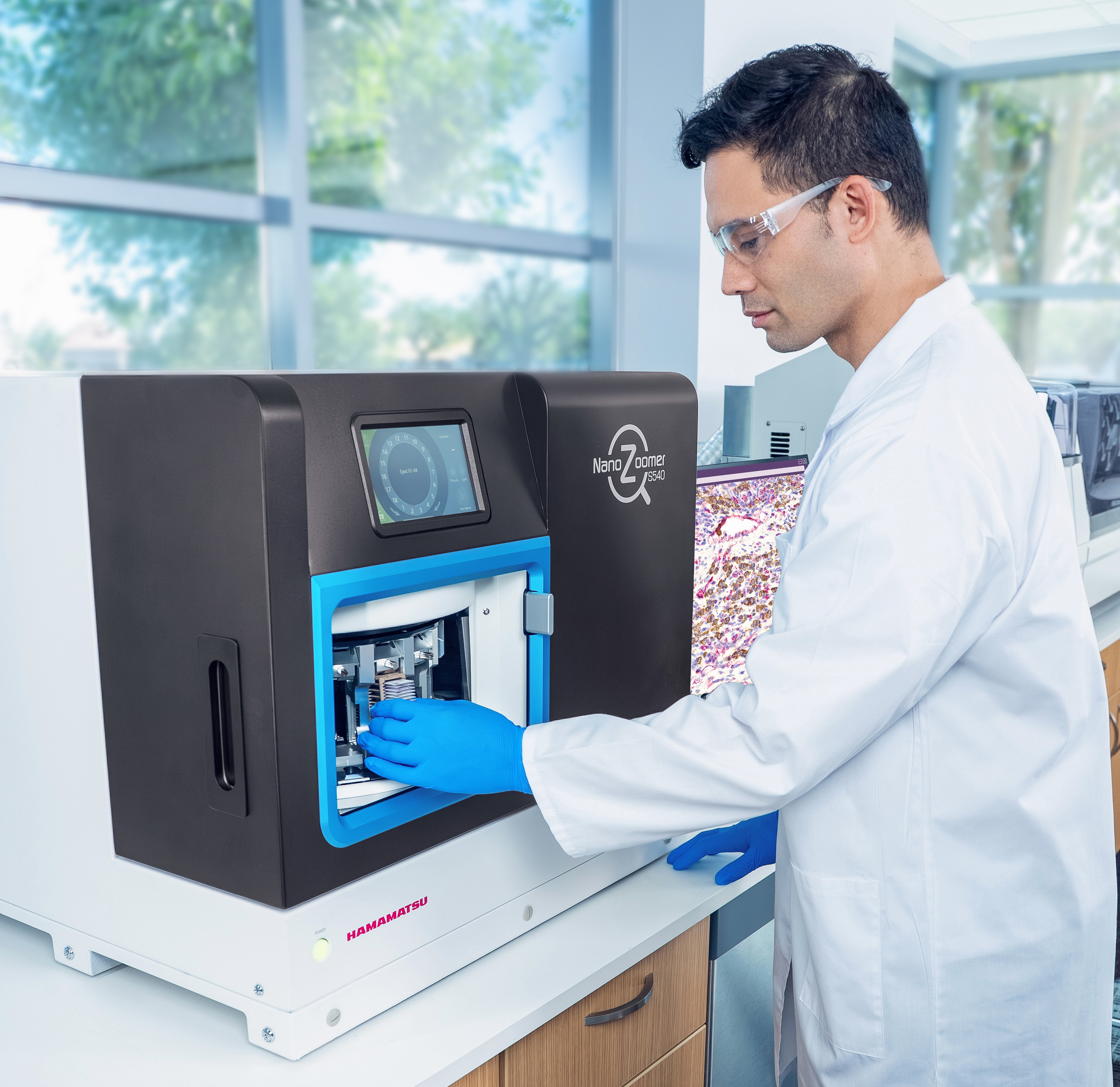

Built for demanding workflows, the S540 supports up to 540 standard slides when paired with 30-slide racks or 360 slides with20-slide Sakura basket. Continuous loading lets users insert and exchange racks during scanning, reducing downtime. Anintuitive touchscreen interface simplifies scan control and monitoring directly at the instrument.
Image Quality & Integration
High-resolution optics, pre-focus mapping, and included Z-stack capability ensure detailed digital slide imagery. Integrated 1Dand 2D barcode reading supports slide traceability, while JPEG image compression balances image fidelity with manageabledigital storage.
Features
|
Benefits
|
| High-throughput scanning (up to 82slides/hour) |
Keeps pace with high-volume labs and reduces turnaround time |
| Approx. 30 seconds per slide (20x /40x mode) |
Enables rapid digitization without compromising workflow efficiency |
| Maximum capacity up to 540 slides (30-slide racks x 18) |
Supports large batch scanning for streamlined operations |
| Compatibility with both 20-slideSakura baskets and 30-slide racks |
Flexible configuration to match lab volume and workflow needs |
| Continuous loading capacity |
Insert or exchange racks anytime without interrupting scanning |
| Rack priority setting |
Optimize urgent case handling directly from the scanner or software |

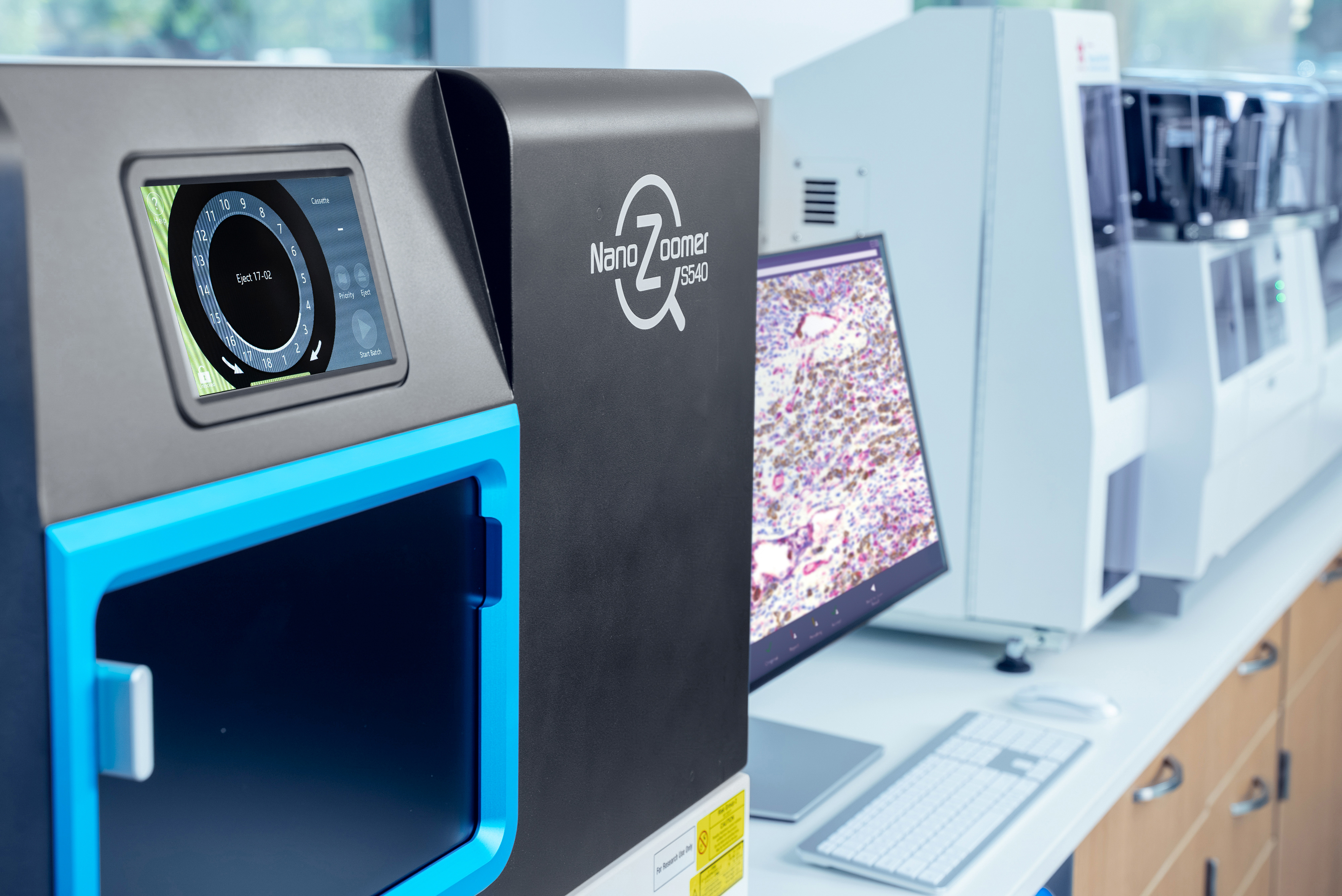

| Fully-automatic and semi-automaticscanning modes |
Adapt scanning workflows to lab preferences and case requirements |
| AI tissue detection |
Ensures targeted scanning of tissue areas while avoiding blank regions |
| Customizable scan profiles |
Standardize scan parameters and improve workflow consistency |
| QC (Quality Check) mode |
Verify image quality before accepting whole slide image |
|
Product name
|

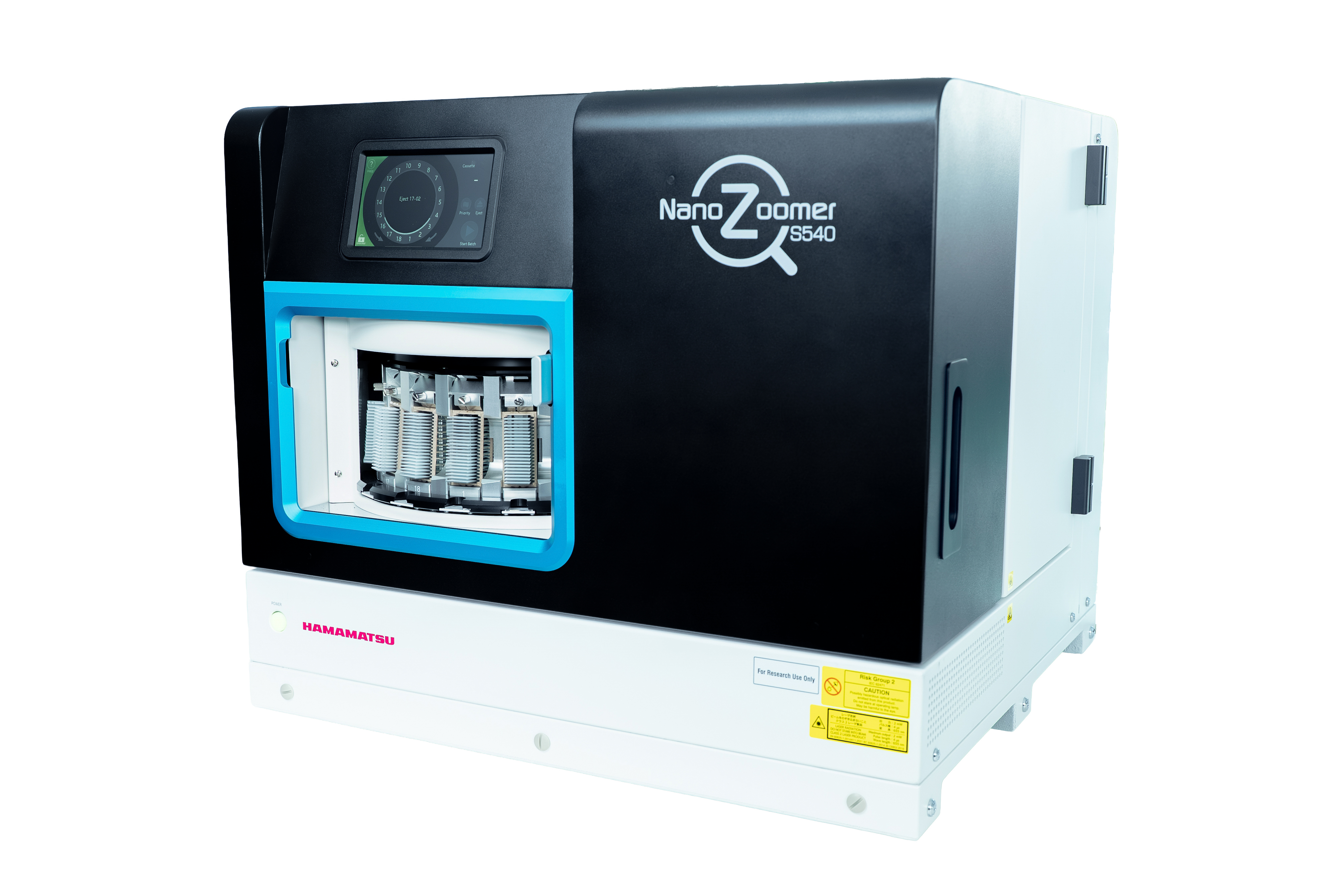

NanoZoomer S540 Digital slide scanner
|
|
Product number
|
C17400-01
|
|
Application
|
High-throughput digital slide scanning with rack compatibility and continuous loading for whole slide image acquisition
|
|
Dimensions (with cart)
|
29.5 (W) x 27.2 (D) x 52.4 (H) inches 75.0 (W) x 69.0 (D) x 133.1 (H) cm
|
|
Weight
|
Scanner: Approx. 125 kg
Dedicated cart: Approx. 65 kg
|
|
Power requirements
|
AC 100 V to AC 240 V
Approx. 200 VA (scanner only)
|
|
Capacity
|
Max. 540 slides (30 slides per 18 racks)
Max. 360 slides (20 slides per 18 Sakura baskets)
|
|
Scan speed
|
Approx. 30s/slide (20x / 40x mode)
|
|
Throughput
|
More than 82 slides/hour (20x / 40x mode)
|
|
Objective lens
|
20x N.A. 0.75; 20x / 40x options available
|
|
Scanning resolution
|
~0.46 μm/pixel (20x) / 0.23 μm/pixel (40x)
|
|
Focusing Method
|
Pre-Focus map
|
|
Z-stack feature
|
Included; Customizable up to 99 layers
|
|
Image compression
|
JPEG
|
|
Readable barcodes
|
1D Barcodes: Code 39, Code 128, Interleaved 2 of 5, Codabar, EAN-8, UPC-E
2D Barcodes: DataMatrix (ECC200), QR Code (QR Code Model-2)
|
|
Regulatory information
|
For Research Use Only. Not for use in diagnostic procedures.
|
