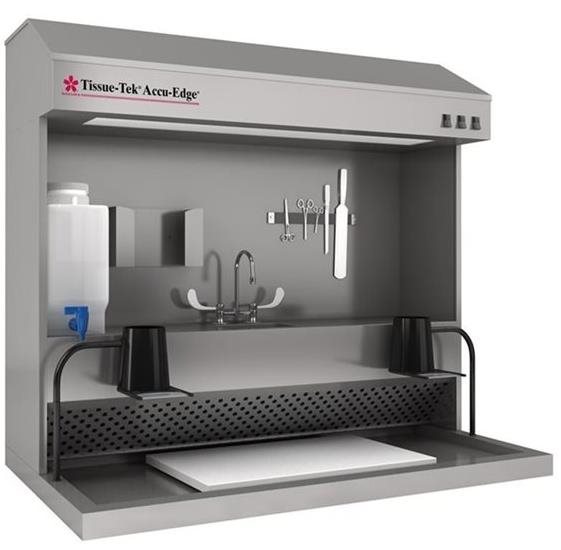

Countertop Grossing Station

Constructed from high-quality stainless steel, the Tissue-Tek Accu-Edge Countertop Grossing Station comes equipped with a vacuum breaker-protected water supply.Model #0110 is available with

Enhanced grossing capabilities for limited spaces

As part of the full line of superior grossing stations from Sakura Finetek, the Tissue-Tek® Accu-Edge® Countertop Grossing Station offers your lab enhanced grossing capabilities, even in limited space.

Constructed from high-quality stainless steel, the Tissue-Tek Accu-Edge Countertop Grossing Station comes equipped with a vacuum breaker-protected water supply.

Model #0110 is available with two duct options: ducting either to an outside ventilation source or by using the self-contained ventilation system with replaceable filters. Other standard features of this countertop grossing station include an integral sink with mixing faucet, easily accessible control panel, ample lighting, formalin container with spigot, C-fold paper towel holder, magnetic instrument holder, and a polyethylene dissecting board. Model #0110 can also be configured as a stand-alone unit.

Options include the base leg assembly (Model #0120) or the base leg assembly with cabinet (Model #0121), and the PAXcamHD Gross Imaging System. Other optional accessories are available.

Grossing stations are available in widths of 48 or 60 inches.

DESIGN YOUR GROSSING STATION

Features

     Benefits

304 stainless steel
  • Sturdy construction to perform routing grossing procedures
Exhaust duct connection
  • Connects to buildings ventilation system to remove fumes away from the work area
Integral sink with mixing faucet
  • Small sink provides water to the grossing station
LED light fixtures
  • Provides ample lighting over the work area
GFCI duplex receptacle with waterproof cover
  • Allows for external devices to be plugged into the grossing stations and used
Magnetic instrument holder
  • Holds common tools on the front of the grossing station within arm's reach of the work area
Customizable
  • Built to laboratory's specifications

Product name Tissue-Tek® Accu-Edge® Countertop Grossing Station
Product code 0110
Application Grossing procedures
Dimensions 48 or 60 (W) x 29 (D) x 47 (H) inches
122 or 153 (W) x 74 (D) x 120 (H) cm
Weight 48 inch station, 275 lbs (171 kg)
60 inch station, 325 lbs (193 kg)
Regulatory status IVD, FDA Class I

Product code

Product name and quantity

0148 Tissue-Tek® Accu-Edge® Grossing Station, CPU Bracket
0150 Tissue-Tek® Accu-Edge® Grossing Station, Camera Mount Facility
0152 Tissue-Tek® Accu-Edge® Grossing Station, Cassette Holders; 3/case
0156 Tissue-Tek® Accu-Edge® Grossing Station, Disposal, 1 HP
0164 Tissue-Tek® Accu-Edge® Grossing Station, Eyewash Assembly
0169 Tissue-Tek® Accu-Edge® Grossing Station, Filter Activated Carbon & Potassium Permanganate
0170 Tissue-Tek® Accu-Edge® Grossing Station, Flammable Storage Cabinet
0172 Tissue-Tek® Accu-Edge® Grossing Station, Formalin Dispense/Collection
0175 Tissue-Tek® Accu-Edge® Grossing Station, Form Holders; 2/case
0176 Tissue-Tek® Accu-Edge® Grossing Station, Full Perimeter Rinse
0177 Tissue-Tek® Accu-Edge® Grossing Station, Glove Box Holder
0178 Tissue-Tek® Accu-Edge® Grossing Station, Halogen Light, Flex Arm
0186 Tissue-Tek® Accu-Edge® Grossing Station, Magnifier Light, Deck Mount
0188 Tissue-Tek® Accu-Edge® Grossing Station, Microphone on Flex Arm
0190 Tissue-Tek® Accu-Edge® Grossing Station, Monitor & Keyboard Stand
0201 Tissue-Tek® Accu-Edge® Grossing Station, Ruler, Removable, Stainless Steel
0203 Tissue-Tek® Accu-Edge® Grossing Station, Scale, Economy
0204 Tissue-Tek® Accu-Edge® Grossing Station, Scale, Digital
0206 Tissue-Tek® Accu-Edge® Grossing Station, Shelving/Cabinets, Adjustable
0207 Tissue-Tek® Accu-Edge® Grossing Station, Side Splashes
0208 Tissue-Tek® Accu-Edge® Grossing Station, Splash Shield on Flex Arm
0215 Tissue-Tek® Accu-Edge® Grossing Station, Trash Container, Ventilated
0217 Tissue-Tek® Accu-Edge® Grossing Station, Utility Drawer
0222 Tissue-Tek® Accu-Edge® Grossing Station, Ventilation, Self-Contained
0224 Tissue-Tek® Accu-Edge® Grossing Station, Video Camera Arm
0228 Tissue-Tek® Accu-Edge® Grossing Station, Dictation, Voice Activated
0229 Tissue-Tek® Accu-Edge® Grossing Station, Work Area Cover, Plexiglas
0230 Tissue-Tek® Accu-Edge® Grossing Station, Writing Platform, Pull-Out
PI-HDG PAXcamHD Gross Imaging Camera plus Software
PI-HDG-B PAXcam Benchtop stand
PI-HDG-BL PAXcam Back Light
PI-HDG-RL PAXcam Ringlight
PI-HDG-RBL PAXcam Combined Ringlight with Back Light
