Elevating Grossing Station

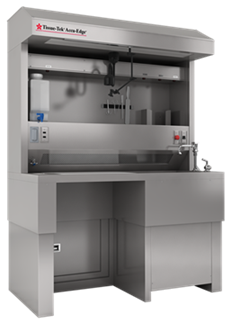

Constructed from high-quality stainless steel, the Tissue-Tek Accu-Edge Elevating Grossing Station for pathology is a floor model that stands at counter height. Model #0105 has the abil

Height adjustments for user convenience

One of the superior elevating grossing stations for pathology from Sakura Finetek, the Tissue-Tek® Accu-Edge® Elevating Grossing Station has been designed to fit into most lab configurations while accommodating the height of all lab personnel.

Constructed from high-quality stainless steel, the Tissue-Tek Accu-Edge Elevating Grossing Station for pathology is a floor model that stands at counter height. Model #0105 has the ability to elevate from 32" to 44" to accommodate all pathology lab personnel.

This elevating grossing workstation is equipped with a vacuum breaker-protected water supply and duct directly to the building ventilation system. Other standard features include ½ horsepower disposal, polyethylene dissecting board, magnetic instrument holder, dissecting area rinse, shelving, and a spray hose assembly.

Optional accessories are available, including the PAXcamHD Gross Imaging System.

Elevating grossing workstations for pathology are available in widths of 48 or 60 inches.

DESIGN YOUR GROSSING STATION

Features

     Benefits

Elevation
  • Elevates up and down a total of 12 inches from 32 to 44 inches to accomodate all laboratory personnel
Customizable
  • Built to laboratory's specifications
End rinse
  • Rinses away debris from work area
304 stainless steel
  • Sturdy construction to perform routing grossing procedures
Backdraft exhaust
  • Connects to buildings ventilation system to remove fumes away from the work area
Sink with mixing faucet
  • Large sink provides water to the grossing station, comes with a 1/2 HP disposal
LED light fixtures
  • Provides ample lighting over the work area
GFCI duplex receptacle with waterproof cover
  • Allows for external devices to be plugged into the grossing stations and used
Magnetic instrument holder
  • Holds common tools on the front of the grossing station within arm's reach of the work area

Product name Tissue-Tek® Accu-Edge® Elevating Grossing Station
Product code 0105
Application Grossing procedures
Dimensions 48 or 60 (W) x 30 (D) x 84 to 96 (H) inches
122 or 153 (W) x 77 (D) x 214 to 244 (H) cm
Weight 48-inch station, 800 lbs (363 kg)
60-inch station, 900 lbs (409 kg)
Regulatory status IVD, FDA Class I

Product code

Product name and quantity

0148 Tissue-Tek® Accu-Edge® Grossing Station, CPU Bracket
0150 Tissue-Tek® Accu-Edge® Grossing Station, Camera Mount Facility
0152 Tissue-Tek® Accu-Edge® Grossing Station, Cassette Holders; 3/case
0156 Tissue-Tek® Accu-Edge® Grossing Station, Disposal, 1 HP
0164 Tissue-Tek® Accu-Edge® Grossing Station, Eyewash Assembly
0169 Tissue-Tek® Accu-Edge® Grossing Station, Filter Activated Carbon & Potassium Permanganate
0170 Tissue-Tek® Accu-Edge® Grossing Station, Flammable Storage Cabinet
0172 Tissue-Tek® Accu-Edge® Grossing Station, Formalin Dispense/Collection
0175 Tissue-Tek® Accu-Edge® Grossing Station, Form Holders; 2/case
0176 Tissue-Tek® Accu-Edge® Grossing Station, Full Perimeter Rinse
0177 Tissue-Tek® Accu-Edge® Grossing Station, Glove Box Holder
0178 Tissue-Tek® Accu-Edge® Grossing Station, Halogen Light, Flex Arm
0186 Tissue-Tek® Accu-Edge® Grossing Station, Magnifier Light, Deck Mount
0188 Tissue-Tek® Accu-Edge® Grossing Station, Microphone on Flex Arm
0190 Tissue-Tek® Accu-Edge® Grossing Station, Monitor & Keyboard Stand
0201 Tissue-Tek® Accu-Edge® Grossing Station, Ruler, Removable, Stainless Steel
0203 Tissue-Tek® Accu-Edge® Grossing Station, Scale, Economy
0204 Tissue-Tek® Accu-Edge® Grossing Station, Scale, Digital
0206 Tissue-Tek® Accu-Edge® Grossing Station, Shelving/Cabinets, Adjustable
0207 Tissue-Tek® Accu-Edge® Grossing Station, Side Splashes
0208 Tissue-Tek® Accu-Edge® Grossing Station, Splash Shield on Flex Arm
0215 Tissue-Tek® Accu-Edge® Grossing Station, Trash Container, Ventilated
0217 Tissue-Tek® Accu-Edge® Grossing Station, Utility Drawer
0222 Tissue-Tek® Accu-Edge® Grossing Station, Ventilation, Self-Contained
0224 Tissue-Tek® Accu-Edge® Grossing Station, Video Camera Arm
0228 Tissue-Tek® Accu-Edge® Grossing Station, Dictation, Voice Activated
0229 Tissue-Tek® Accu-Edge® Grossing Station, Work Area Cover, Plexiglas
0230 Tissue-Tek® Accu-Edge® Grossing Station, Writing Platform, Pull-Out
PI-HDG PAXcamHD Gross Imaging Camera plus Software
PI-HDG-B PAXcam Benchtop stand
PI-HDG-BL PAXcam Back Light
PI-HDG-RL PAXcam Ringlight
PI-HDG-RBL PAXcam Combined Ringlight with Back Light
